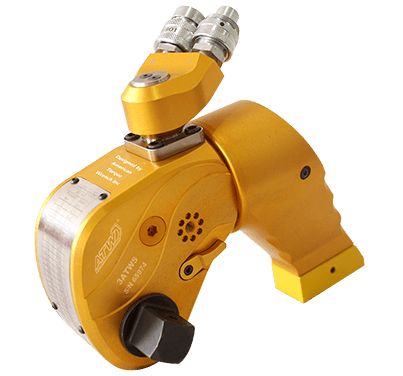

A square-drive hydraulic torque wrench is a tool used to precisely tighten or loosen bolts and nuts. It is driven by a 10,000 PSI hydraulic pump which is typically offered in either Electric Air powered options. The wrench includes a square drive that is often provided in standard 3/4″, 1″, 1.5 & 2.5″ options based on torque output. By adjusting the pressure on the hydraulic pump, you are able to precisely adjust the torque output of the hydraulic wrench when referencing the given torque chart.
● Constantly repeatable accuracy ±3%
● 360°uni swivel quick-release couplings

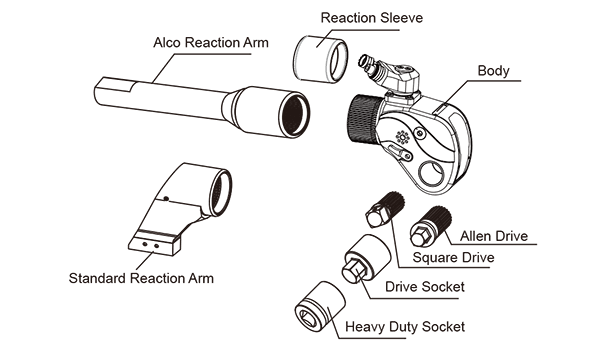

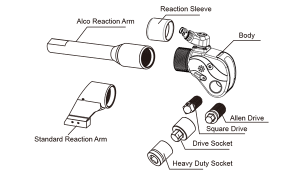

● Easily replaceable square and hexagon drive adapters
● Body shroud engraved with torque pressure chart
● Suitable for continuous operation at maximum pressure
● Heavy-duty aluminum-titanium composite light body
● 360°adjustable reaction arm with safety lock feature
● Models available up to 35,000 ft lbs!

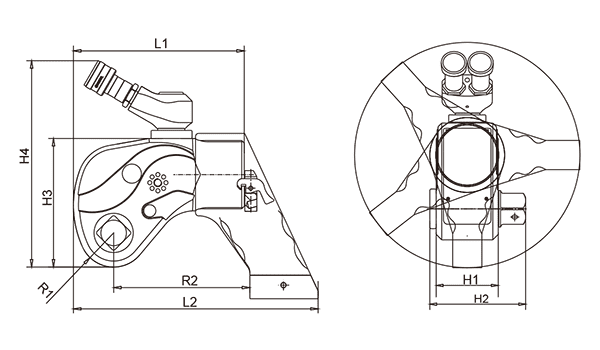

Series Selection Chart
Type | Square Drive | Torque(ft.lbs) | Weight (lbs) | Dimension(inch) | ||||||||
Min | Max | L1 | L2 | H1 | H2 | H3 | H4 | R1 | R2 | |||
1 ATWS | 3/4″ | 134 | 1344 | 5.5 | 5.35 | 7.32 | 1.97 | 3.15 | 3.84 | 5.16 | 1.02 | 3.90 |
3 ATWS | 1″ | 328 | 3278 | 11 | 6.69 | 9.61 | 2.68 | 4.13 | 5.04 | 8.11 | 1.34 | 5.35 |
5 ATWS | 1½” | 547 | 5470 | 18 | 8.03 | 11.22 | 3.15 | 5.20 | 5.98 | 9.06 | 1.61 | 5.91 |
8 ATWS | 1½” | 783 | 7831 | 24 | 8.66 | 12.32 | 3.54 | 5.59 | 6.57 | 9.61 | 1.85 | 6.89 |
10 ATWS | 1½” | 1127 | 11272 | 33 | 9.65 | 13.86 | 4.06 | 6.10 | 7.09 | 10.24 | 2.01 | 7.19 |
20 ATWS | 2½” | 1937 | 19370 | 58 | 11.93 | 17.72 | 4.72 | 7.44 | 8.74 | 11.81 | 2.40 | 10.04 |
25 ATWS | 2½” | 2523 | 25226 | 77 | 12.72 | 1579 | 5.39 | 7.99 | 9.72 | 11.69 | 2.60 | 7.83 |
35 ATWS | 2½” | 3535 | 35354 | 110 | 14.67 | 18.33 | 6.02 | 8.58 | 11.10 | 13.07 | 3.03 | 9.53 |
