RAD Wheel Nut Bolting & OTR Mining
Description
Wheel Nut & (OTR) Off-Road Mining with Precision Bolting!
RAD Wheel Nut Features:
- RAD planetary gear reduction wrenches are vibration free & perform at or below 80DB
- High accuracy to prevent accidentally under or over tightening
- +/-4% accuracy and +/-2% repeatability
- Numerous configurations are ideal for tight clearances
- Extended reaction point for safe and quick operation
-The fixed nose extension (-R)
-The fixed nose extension (-R) was developed exclusively for extreme duty maintenance of mining haul trucks from 50-400 ton capacities and front-end loaders. The extended nose allows safe access of virtually all wheel configurations found on today’s heavy equipment.
The nose extension kit (-NX)
The nose extension kit (-NX) was designed with flexibility in mind. Complete with 3 different reaction arms and a nose extension for hard-to-reach areas, the GX-NX Kit is a go anywhere tool capable of a variety of applications but especially suitable for off-road construction equipment.
Click here to view the RAD Wheel Nut Bolting & OTR Mining Tool Tear Sheet.
| TOOL MODEL | TORQUE RANGE | RPM |
|---|---|---|

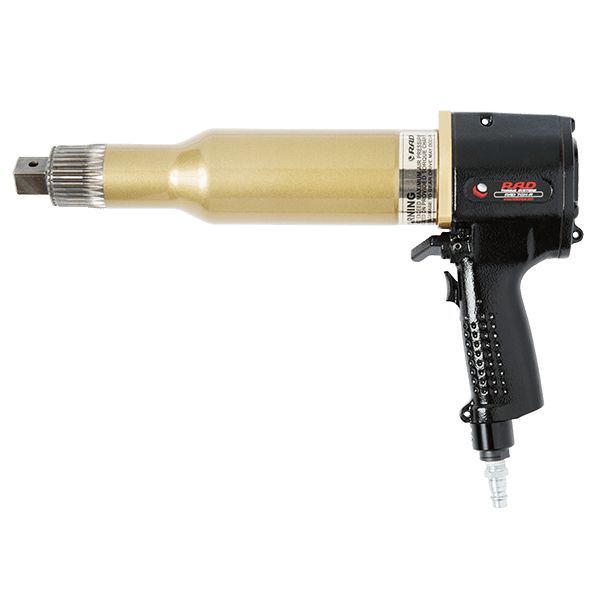

| 7GX-R | 300-700 ft/lbs. | 115 |
| 10GX-NX | 200-1000 ft/lbs. | 20 |
| 15NDX-R | 300-1500 ft/lbs. | 10 |
| 15DX-NX | 300-1500 ft/lbs. | 10 |
| 1800NGX-R | 500-1800 ft/lbs. | 10 |
