Hi-Force STU series sub-sea bolt tensioners are designed and manufactured to suit the demanding requirements of divers operating in harsh sub-sea environments. With an easy to operate two piece design comprising of a quick fit/release threaded puller and a hydraulic load cell with integral bridge and an extra long 30 mm piston stroke to reduce re-setting operations, Hi-Force STU series sub-sea bolt tensioners offer a consistent, reliable and cost effective method of tensioning sub-sea bolted joints. All hydraulic load cells are suitable for different thread sizes and interchangeable quick fit/release pullers can be ordered separately, as required, resulting in even greater flexibility and cost savings.
Capacities from 256 to 2482 kN
Bolt sizes 1″ to 3½” diameter
Working pressure 1500 bar
Single acting design with manual piston retraction
High grade alloy steel construction
Simple two piece design for easy operation by divers subsea
Visible maximum piston stroke indicator
Dual quick connect couplings for easy connection
Designed to fit most sizes of ANSI and API flanges and some Compact flanges
Interchangeable quick fit pullers to cover secondary bolt sizes for each STU model
Customized and special design tensioners are available on request
Download
Enquire
Sub-Sea Bolt Tensioners Imperial Range
Model Number | Quick fit puller | Bolt Thread Size | Capacity | Effective area cm2 | Stroke mm | Weight kg | Tommy Bar | |
---|---|---|---|---|---|---|---|---|
kN | tonnes | |||||||
STU1-100 | QFP1-100 | 1″ – 8UN | 256 | 26.1 | 17.1 | 20 | 3.4 | TTB06 |
STU1-112 | QFP1-112 | 1 1/8″- 8UN | 256 | 26.1 | 17.1 | 20 | 3.4 | TTB06 |
STU2-125 | QFP2-125 | 1 1/4″- 8UN | 430 | 43.9 | 28.7 | 30 | 6.0 | TTB08 |
STU2-137 | QFP2-137 | 1 3/8″- 8UN | 430 | 43.9 | 28.7 | 30 | 6.0 | TTB08 |
STU3-150 | QFP3-150 | 1 1/2″- 8UN | 553 | 56.4 | 36.9 | 30 | 7.5 | TTB10 |
STU3-162 | QFP3-162 | 1 5/8″- 8UN | 553 | 56.4 | 36.9 | 30 | 7.5 | TTB10 |
STU4-175 | QFP4-175 | 1 3/4″- 8UN | 756 | 77.1 | 50.4 | 30 | 9.8 | TTB10 |
STU4-187 | QFP4-187 | 1 7/8″- 8UN | 756 | 77.1 | 50.4 | 30 | 9.8 | TTB10 |
STU5-200 | QFP5-200 | 2″ – 8UN | 1168 | 119.1 | 77.9 | 30 | 14.5 | TTB12 |
STU5-225 | QFP5-225 | 2 1/4″ – 8UN | 1168 | 119.1 | 77.9 | 30 | 14.5 | TTB12 |
STU6-250 | QFP6-250 | 2 1/2″ – 8UN | 1649 | 168.1 | 109.9 | 30 | 22.8 | TTB14 |
STU6-275 | QFP6-275 | 2 3/4″ – 8UN | 1649 | 168.1 | 109.9 | 30 | 22.8 | TTB14 |
STU7-300 | QFP7-300 | 3″ – 8UN | 2483 | 253.2 | 165.6 | 30 | 35.6 | TTB16 |
STU7-325 | QFP7-325 | 3 1/4″ – 8UN | 2483 | 253.2 | 165.6 | 30 | 35.6 | TTB16 |
STU7-350 | QFP7-350 | 3 1/2″ – 8UN | 2483 | 253.2 | 165.6 | 30 | 35.6 | TTB16 |
Note: Tommy bars are not included. Hi-Force recommends one tommy bar for every four tensioners. Please note that the tommy bar listed will fit related quickfit puller; a different size may be required for the hexagon nut.

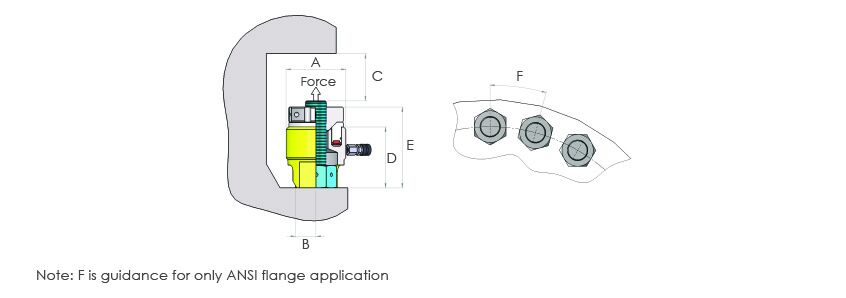

Model Number | Dimensions in mm | |||||
---|---|---|---|---|---|---|
A | B | C | D | E | F | |
STU1-100 | 82 | 22 | 119 | 119 | 140 | 61 |
STU1-112 | 82 | 22 | 119 | 119 | 140 | 64 |
STU2-125 | 102 | 30 | 140 | 140 | 164 | 73 |
STU2-137 | 102 | 30 | 140 | 140 | 164 | 75 |
STU3-150 | 114 | 35 | 142 | 142 | 169 | 82 |
STU3-162 | 114 | 35 | 142 | 142 | 169 | 85 |
STU4-175 | 128 | 41 | 151 | 151 | 181 | 94 |
STU4-187 | 128 | 41 | 151 | 151 | 181 | 98 |
STU5-200 | 150 | 48 | 164 | 164 | 202 | 112 |
STU5-225 | 150 | 48 | 164 | 164 | 202 | 116 |
STU6-250 | 176 | 60 | 183 | 183 | 231 | 136 |
STU6-275 | 176 | 60 | 183 | 183 | 231 | 141 |
STU7-300 | 215 | 89 | 215 | 215 | 260 | 162 |
STU7-325 | 215 | 89 | 215 | 215 | 260 | 173 |
STU7-350 | 215 | 89 | 215 | 215 | 260 | 175 |
