FSW17D – Flange Spreading Wedge Twin Tool Kit

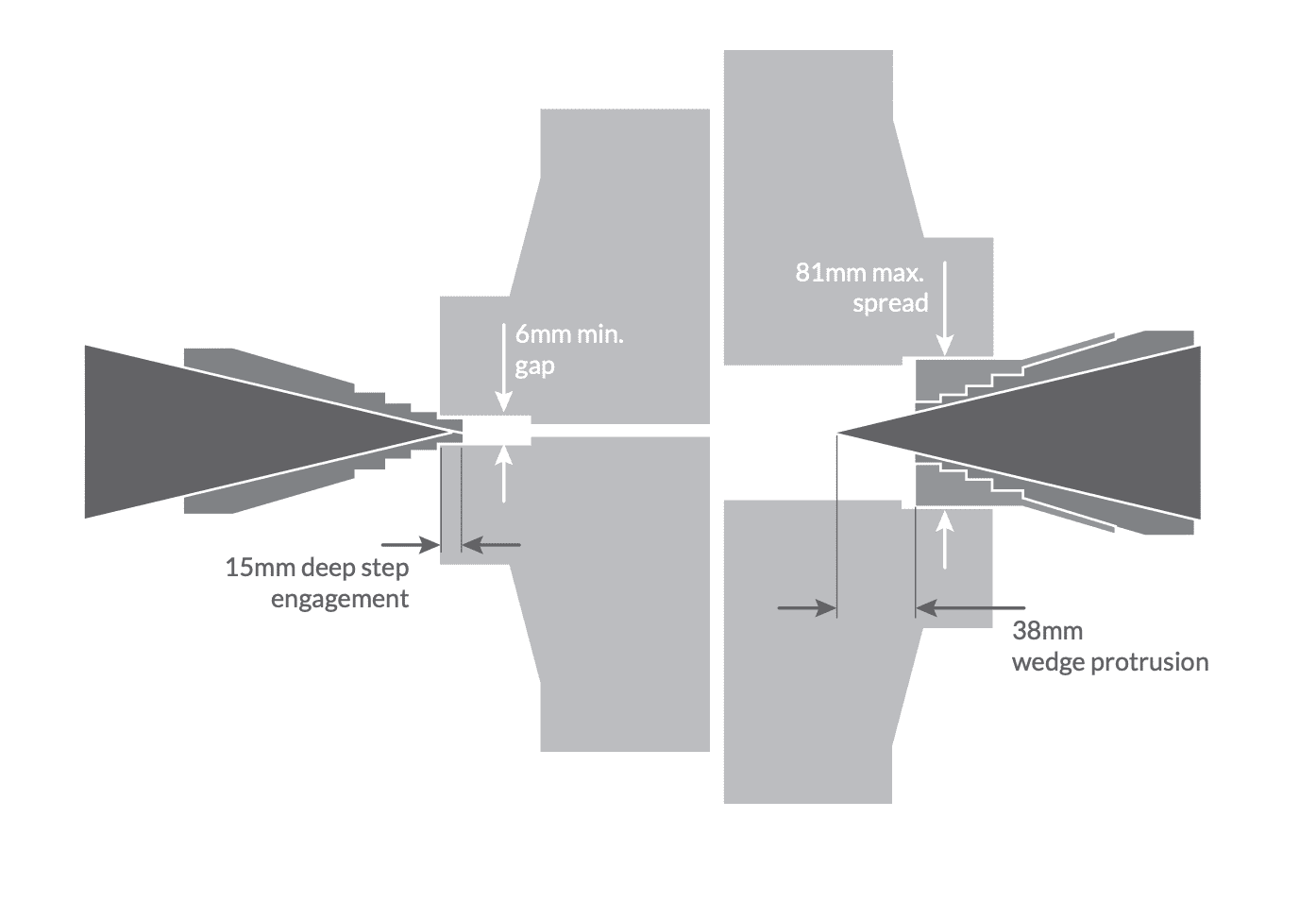

Renquip’s FSW17 flange spreading wedge kit can enter a flange joint access gap as little as 6mm (0.24”) and produce a maximum force of 326kN (32.6T) when used in pairs (as recommended) to push the mating faces of flanges apart. The FSW17 can create a gap up to 81mm (3.19”) between flange faces with the stepped blocks fitted facilitating the replacement of gaskets, seal ring’s, or other flange face maintenance and testing.

It is strongly recommended that a minimum of 2 flange spreading wedges are used when spreading a flange joint. The flange spreading wedges should positioned at opposite sides of the flange joint and actuated as necessary to maintain a parallel joint gap.

Tool Specs

• Tool weight: 15.4lbs
• Max Spreading force: 16.3T (32.6T when used in pairs)
• Spreading distance .24″ to 3.1″ (when used with stepped blocks)

Kit Specs

• Kit weight: 44.1lbs
• Kit Dims.: 22.8” x 13.4” x 7.1”
• Tool Weight: 15.4lbs
• Tool Dims.: 3.0” x 6.1” x 13.8”

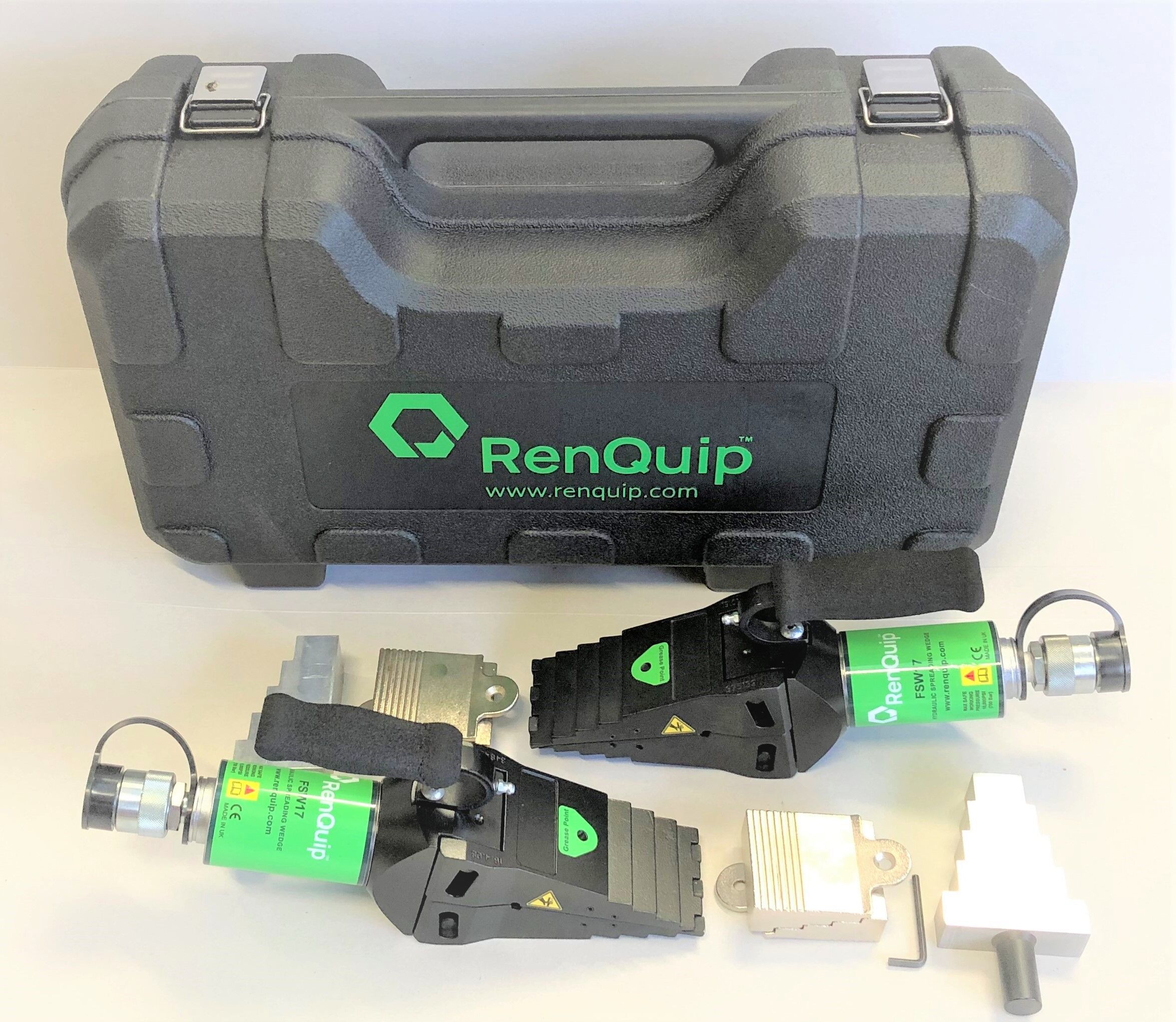

Kit Contents

• 2 x FSW17 Tool
• 2 x Safety Block
• 2 x Safety Lanyard
• 4x Stepped Blocks with securing screws and allen key
• 1 x Instruction Manual
• 1 x Robust moulded carry case

View the FSW17D Data Sheet
