HFA Range

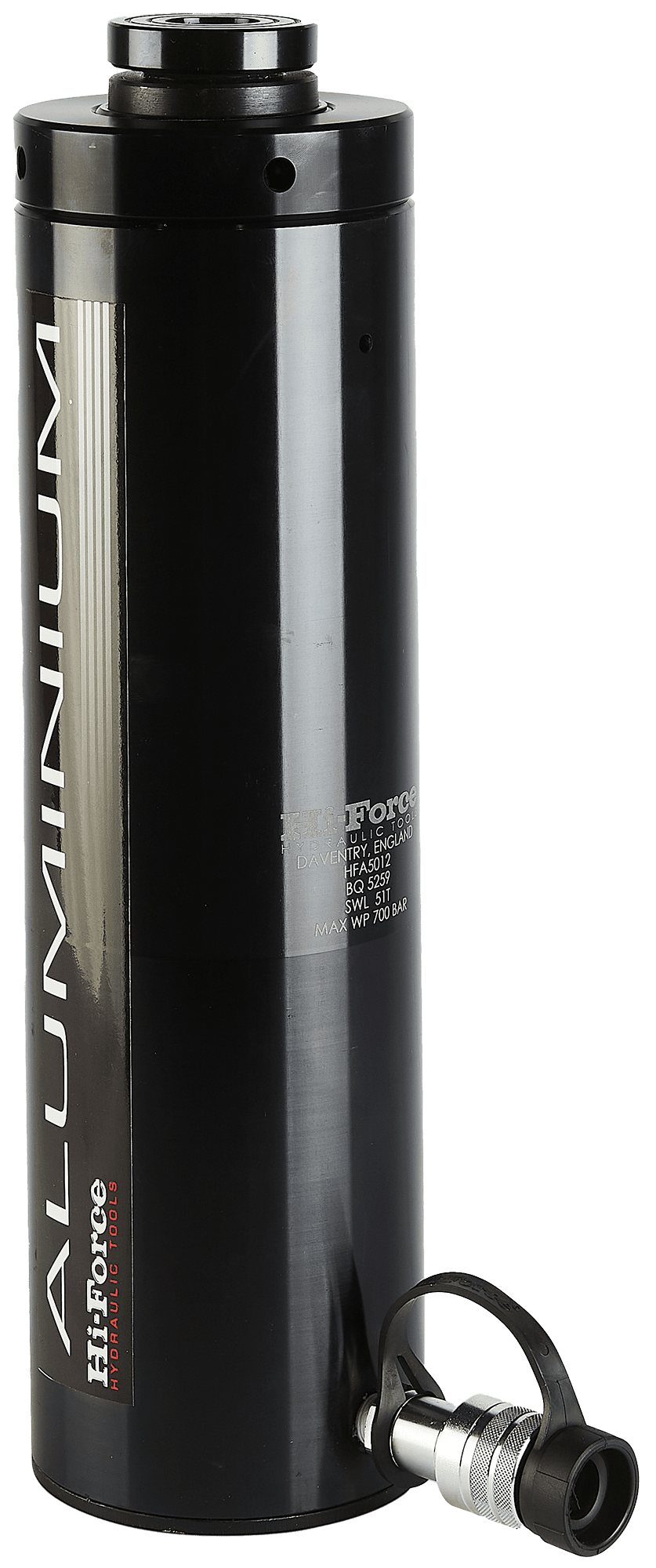

The HFA range offers the benefit of significantly reduced weight compared to conventional steel cylinders as well as combines all the versatility and efficiency of hydraulic power with the safety of mechanical load support. Ideally suited for applications requiring sustained load holding for extended periods, such as bridge support work, the HFA cylinders feature a single acting, spring assisted return piston threaded throughout its stroke length, to suit the threaded mechanical load holding lock ring. Other capacities and stroke lengths area available on request.

Capacities from 32 to 110 tons
Stroke lengths from 51 to 305 mm
Working pressure 700 bar
Single acting, spring assisted return
Hard anodized piston rod and cylinder for corrosion resistance
Low friction bearing surfaces
Anti-extrusion seals
Tilting saddle fitted as standard
Integral stop ring
Customized and special design cylinders are available on request
