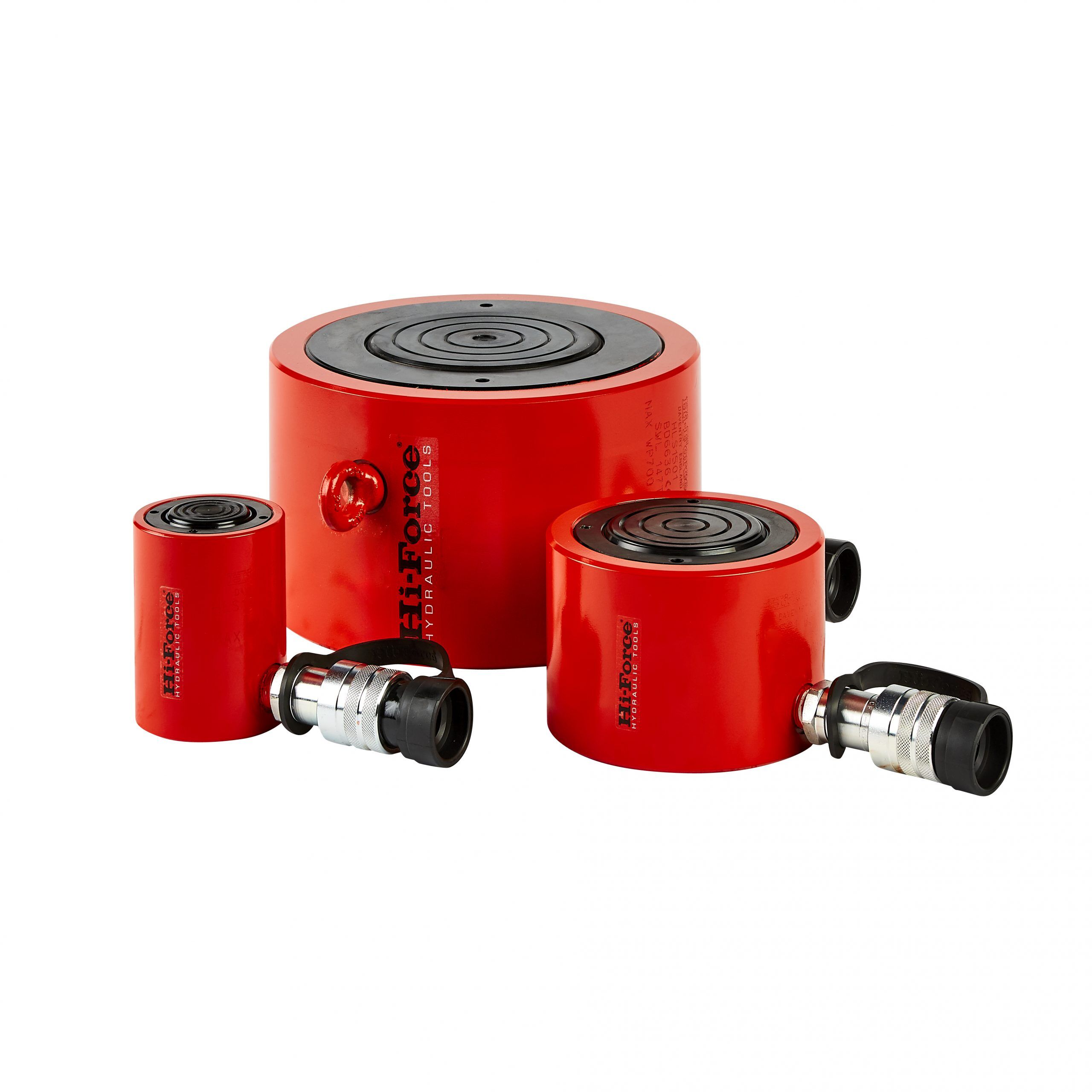

The HLS low height cylinder range is the most widely used Hi-Force cylinder design in the world today. All models have spring assisted return pistons and combine low closed height with optimum stroke lengths. Offering a compact, powerful force for a wide variety of applications in many industries including power generation, ship building & repair, construction, railways, mining, steel works, oil & gas and many others. The HLS range offers a compact, portable option in an inexpensive package.
Capacities from 10 to 147 tons
Stroke lengths from 25 to 60 mm
Working pressure 700 bar
Single acting, spring assisted return
Nitrocarburized piston rod
Low friction bearing surfaces
Anti-extrusion seals
Customized and special design cylinders are available on request
| Model Number | Capacity tons | Stroke mm | Oil cap. cm3 | Cyl. eff. area cm2 | Weight kg |
|---|---|---|---|---|---|
| HLS101 | 10 | 40 | 58 | 14.4 | 2.4 |
| HLS201 | 20 | 44 | 126 | 28.6 | 4.8 |
| HLS301 | 32 | 25 | 114 | 45.6 | 5.0 |
| HLS302 | 32 | 60 | 274 | 45.6 | 7.0 |

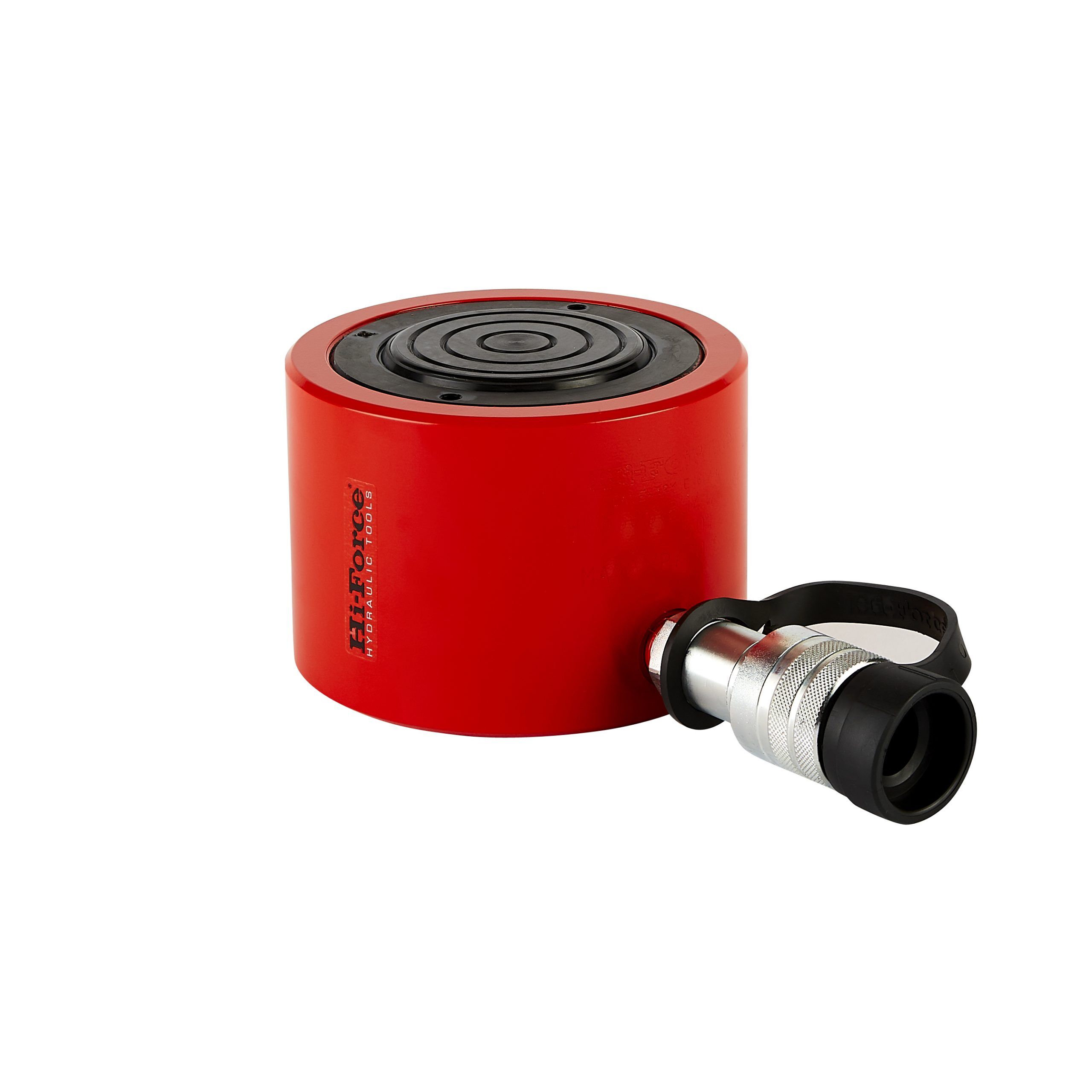

| HLS501 | 50 | 25 | 178 | 71.3 | 8.4 |
| HLS502 | 50 | 60 | 428 | 71.3 | 10.4 |
| HLS1001 | 109 | 25 | 384 | 153.4 | 19.8 |
| HLS1002 | 109 | 60 | 921 | 153.4 | 24.0 |
| HLS1501 | 147 | 25 | 516 | 206.2 | 37.0 |
| HLS1502 | 147 | 50 | 1031 | 206.2 | 42.0 |

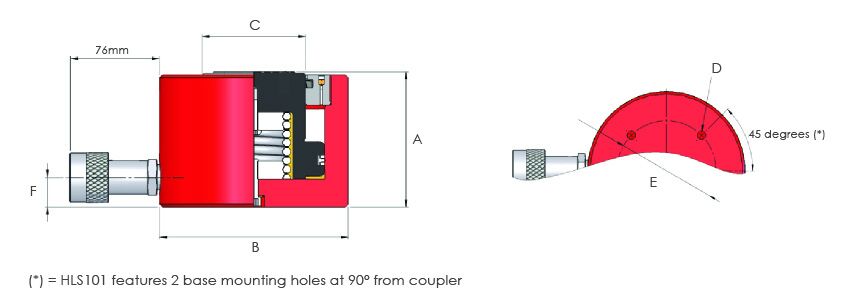

| Model Number | Dimensions in mm | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| HLS101 | 95 | 70 | 38 | M8 | 40 | 19 |
| HLS201 | 102 | 90 | 51 | M8 | 60 | 19 |
| HLS301 | 83 | 102 | 60 | M8 | 80 | 19 |
| HLS302 | 119 | 102 | 60 | M8 | 80 | 19 |
| HLS501 | 91 | 127 | 70 | M8 | 80 | 20 |
| HLS502 | 126 | 127 | 70 | M8 | 80 | 20 |
| HLS1001 | 108 | 178 | 114 | M12 | 140 | 30 |
| HLS1002 | 143 | 178 | 114 | M12 | 140 | 30 |
| HLS1501 | 130 | 216 | 114 | M12 | 165 | 41 |
| HLS1502 | 155 | 216 | 114 | M12 | 165 | 41 |
