A Guide to Hydraulic Cylinder Calculations

Hydraulic cylinders provide linear motion and force for various processes. As a critical part of hydraulic systems, understanding how to calculate the force, pressure, and size of hydraulic cylinders is crucial for engineers and technicians.

Below, we look at how to conduct hydraulic cylinder calculations, why these calculations are important in hydraulics, and how to choose a relevant calculator.

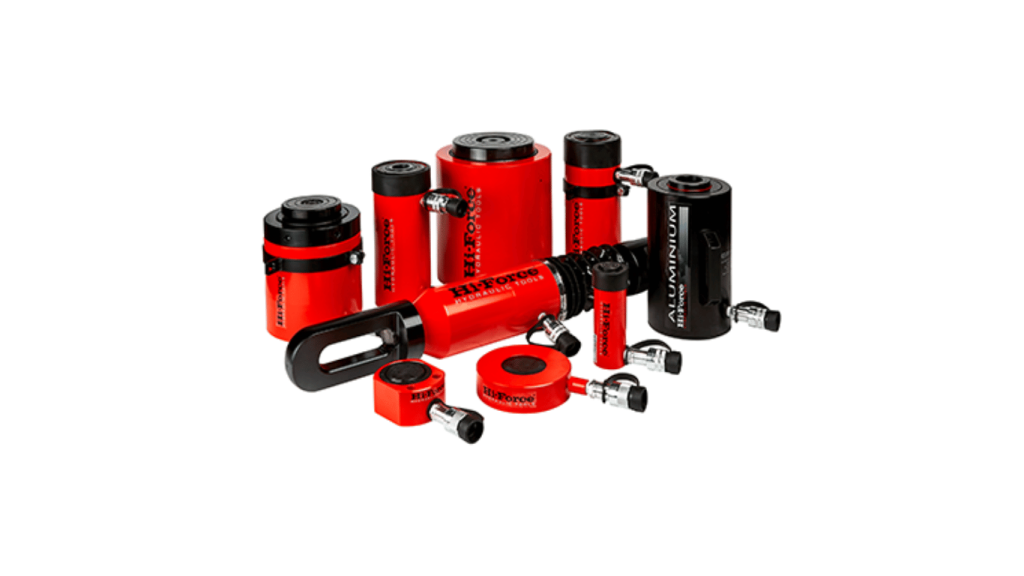

What Is a Hydraulic Cylinder?

A hydraulic cylinder is a mechanical actuator that converts hydraulic energy into linear motion and force. It consists of a cylindrical barrel, a piston, and a rod. The piston is sealed inside the barrel. Hydraulic fluid is pumped into either side of the piston, causing it to move along the cylinder’s axis. This motion is then transferred to the rod, which extends or retracts to perform work in various applications, such as lifting, pressing, or moving loads.

Why Are Hydraulic Cylinder Calculations Important?

Proper Sizing

Accurate hydraulic cylinder calculations are crucial for determining the correct size of the cylinder. This ensures it generates the required force and motion for the application, preventing issues from being undersized or oversized.

System Efficiency

By optimizing the size and performance of the hydraulic cylinder, calculations can help improve system efficiency. This leads to reduced energy consumption and lower operating costs, enhancing the overall performance of the hydraulic system.

Component Longevity

When hydraulic cylinders are properly sized, they undergo less stress and wear. This results in longer component life and fewer maintenance demands, ultimately saving time and resources.

Safety

Precise calculations ensure that the hydraulic cylinder functions within its design limits, reducing the potential for failure or accidents and promoting a safer operating environment.

How to Calculate Hydraulic Cylinder Force

The force generated by a hydraulic cylinder depends on two main factors:

1. Hydraulic pressure
2. Effective area of the piston

To calculate the force, you can use the following formula:

Force (lbs) = Pressure (psi) × Area (in²)

To determine the area of the piston, you need to know the diameter of the cylinder bore. The formula for calculating the area is:

Area (in²) = π × (Bore Diameter (in))² ÷ 4

Where π (pi) is approximately 3.14159.

For example, if you have a hydraulic cylinder with a bore diameter of 4 inches and a hydraulic pressure of 2,000 psi, the force generated would be:

Area = 3.14159 × (4 in)² ÷ 4 = 12.57 in² Force = 2,000 psi × 12.57 in² = 25,140 lbs

What About Rod Diameter?

You need to consider the diameter of the rod when calculating the force of a hydraulic cylinder. The presence of the rod reduces the effective area on the rod side of the piston, resulting in a difference in force between the extend and retract strokes.

To calculate the effective area on the rod side, use the following formula:

Rod Side Area (in²) = (π × (Bore Diameter (in))² – π × (Rod Diameter (in))²) ÷ 4

For instance, if the cylinder from the previous example has a rod diameter of 2 inches, the effective area on the rod side would be:

Rod Side Area = (3.14159 × (4 in)² – 3.14159 × (2 in)²) ÷ 4 = 9.42 in²

Consequently, the force generated on the rod side would be:

Rod Side Force = 2,000 psi × 9.42 in² = 18,840 lbs

How to Use a Hydraulic Cylinder Calculator

While you can use these formulas to manually calculate hydraulic cylinder force, using a hydraulic cylinder calculator can simplify the process and reduce the risk of errors. Many online resources, such as engineering toolboxes and manufacturer websites, offer hydraulic cylinder calculators to help you determine the force generated by a cylinder based on its dimensions and the system pressure.

To use a hydraulic cylinder calculator, you typically need to input the following information:

• Bore diameter
• Rod diameter
• Hydraulic pressure
• Stroke length (for calculating cylinder volume)

The calculator will then provide the results for the force generated on both the piston and rod sides of the cylinder, as well as the cylinder volume and flow rate requirements.

Hydraulic Cylinder Selection and Sizing

When selecting or designing a hydraulic cylinder for a specific application, several factors must be considered to ensure optimal performance and reliability. These include:

• Force requirements – Determine the amount of force needed to perform the desired task, taking into account any external loads, friction, and safety factors.
• Pressure limitations – Consider the maximum hydraulic pressure available in the system and ensure the cylinder can withstand this pressure without exceeding its design limits.
• Stroke length – Specify the required stroke length based on the application’s motion requirements, considering any space constraints or other design limitations.
• Mounting options – Select the appropriate mounting style (e.g., clevis, trunnion, or flange) based on the application’s requirements and the available space.
• Environmental factors – Consider the operating environment, including temperature, humidity, and exposure to contaminants, and select cylinder materials and seals accordingly.
• Speed and flow rate – Determine the required speed of the cylinder and ensure that the hydraulic system can provide the necessary flow rate to achieve this speed.

By carefully considering these factors and performing accurate calculations, engineers can select or design hydraulic cylinders that provide optimal performance, efficiency, and reliability for their specific applications.
