Bolt Tensioning Plays an Imperative Role in Turbine Maintenance

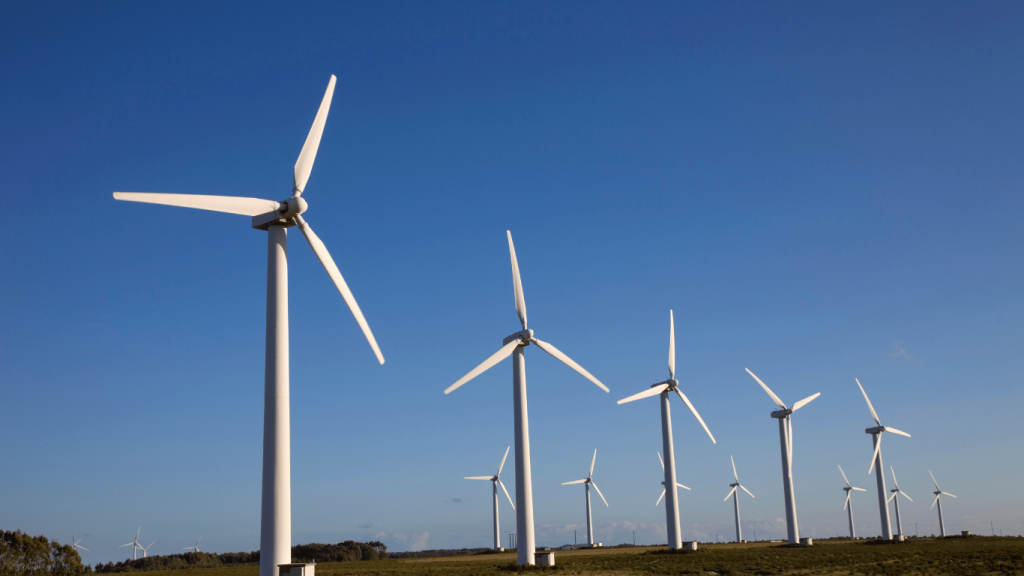

Wind turbines are the backbone of the green energy revolution, generating clean and sustainable power. An essential part of a wind turbine’s anatomy is bolts: from the foundation bolts anchoring it to the earth to the flange connections within the gearbox.
So, keeping these structures—literally—bolt upright requires careful maintenance in general and bolt tensioning in particular. That’s why we’ve decided to dissect the role bolt tensioning plays in turbine maintenance.
Why Do Wind Turbines Need Bolt Maintenance?
A turbine’s numerous bolted joints are under immense stress from constant vibrations, wind shear forces, and the weight of the turbine itself. Over time, improperly tightened bolts can loosen due to relaxation and creep, compromising joint integrity and potentially leading to catastrophic failure. Conversely, over-torquing bolts can damage threads and cause premature failure as well.
Offshore wind turbines in particular present unique challenges for maintenance and inspection due to their remote locations and harsh operating environments. Regular bolt tensioning is essential to ensure the continued integrity of these turbines, as bolted joints can loosen over time due to the extreme forces and vibrations they experience.
The Challenges of Traditional Torquing Methods
Previously, wind turbine bolts were tightened using traditional torque wrenches or hydraulic torque wrenches. However, these methods have inherent limitations and drawbacks:
- The clamping force achieved through torquing is highly dependent on friction between the bolt, nut, and mating surfaces. Even slight variations in friction coefficients can lead to significant differences in the actual clamping force, resulting in loose or overstressed bolted joints.
- As wind turbines operate under dynamic loads and temperature fluctuations, the initial preload applied through torquing can be lost over time due to factors such as plastic deformation, gasket creep, and thermal effects. This loss of preload increases the risk of joint failure, potentially leading to costly downtime and maintenance.
Using Bolt Tensioning Tools
As opposed to torque wrenches, hydraulic bolt tensioners offer a superior solution for wind turbine maintenance. These advanced tools measure the actual elongation of the bolt itself. This elongation is directly proportional to the tensile stress within the bolt, providing a more precise and consistent measure of bolt load. By eliminating the influence of friction, hydraulic tensioning ensures you achieve the targeted bolt load throughout the wind turbine, enhancing overall structural integrity and operational safety.
The Benefits of Bolt Tensioning in Turbine Maintenance
Bolt tensioning offers a more reliable and consistent approach to achieving the required preload in wind turbine bolted joints.
Controlled Stretching
Instead of relying on friction-based torquing, bolt tensioners apply a controlled axial load directly to the bolt, stretching it within its elastic limit. This stretching (or elongation) creates a precise and measurable clamping force across the entire bolted joint, independent of friction factors.
Reduced Load Loss
One key advantage of bolt tensioning is its ability to maintain the applied preload over time. As the hydraulic pressure is released, the stretched bolt tries to return to its original length, generating a continuous clamping force that counteracts the effects of load loss and gasket creep.
This residual clamping force ensures that the bolted joint remains tight and secure throughout its service life, reducing the risk of joint failure and leaks.
Uniform Load Distribution
Bolt tensioning allows for uniform load distribution across multiple bolts or studs, eliminating the risk of uneven gasket compression and deformation. This uniform loading is particularly critical in wind turbine flanges, which often feature numerous bolts or studs that must be evenly tensioned to create a reliable, leak-free seal.
Additional Bolt Tensioning Advantages
Extra ways proper bolt tensioning protects wind turbine operation include:
- Optimum performance – Proper bolt tensioning minimizes vibrations and ensures all the turbine’s components operate efficiently, maximizing its output.
- Safety and reliability – Correctly tensioned bolts mitigate unexpected failures that could endanger personnel and damage turbine components. In turn, this results in fewer unplanned outages and lower maintenance costs.
Keeping Up With Turbine Maintenance
Proper bolt tensioning during turbine construction, inspection, and maintenance is essential to maintaining the structural integrity of these critical bolted connections. By providing consistent and reliable clamping forces, maintaining preload over time, and enabling uniform load distribution across bolted joints, bolt tensioning offers a superior solution to traditional torquing methods.
As the wind energy industry continues to grow, investing in the right bolt tensioning tools, techniques, and expertise is essential for wind farm operators and maintenance teams.
ALLTORC: Offering Wind Turbine Bolt Tensioning Solutions
As a leading supplier of industrial torque tools and equipment, we offer a comprehensive range of hydraulic bolt tensioners and related products. Our wind turbine tensioners undergo rigorous testing to validate their performance under harsh conditions, including wide temperature fluctuations, high vibration, and weather exposure.
Our experienced team can guide you through selecting and applying the right bolt tensioning solutions for your wind turbine projects, whether onshore or offshore. Contact us today.
