Flange Spreaders: Applications and Selection Guide
Flange spreader tools make valve maintenance and gasket replacement safer and more efficient. Instead of hammering wedges between flanges, these hydraulic tools deliver thousands of lbs of controlled spreading force with a simple pump action. The result is separation without the risk of damage or injury.
ALLTORC supplies a full range of RENQUIP flange spreaders, engineered in Scotland for demanding industrial environments. Built for durability and performance, these tools help maintenance teams complete critical tasks with confidence and safety.
What Are Flange Spreaders?
A flange spreader is a hydraulic tool designed to safely separate pipe flanges during maintenance. Instead of relying on hammers and wedges, it uses hydraulic pressure to deliver controlled spreading force. Operators can apply significant force with minimal effort, making tough jobs safer and more efficient.
Modern flange spreaders are built for reliable performance in demanding industrial environments. Each tool combines hydraulic cylinders and hydraulic pumps to deliver consistent force where it’s needed most.
Types of Flange Spreaders
Professional flange spreader tools fall into two primary categories, each designed for specific application requirements.

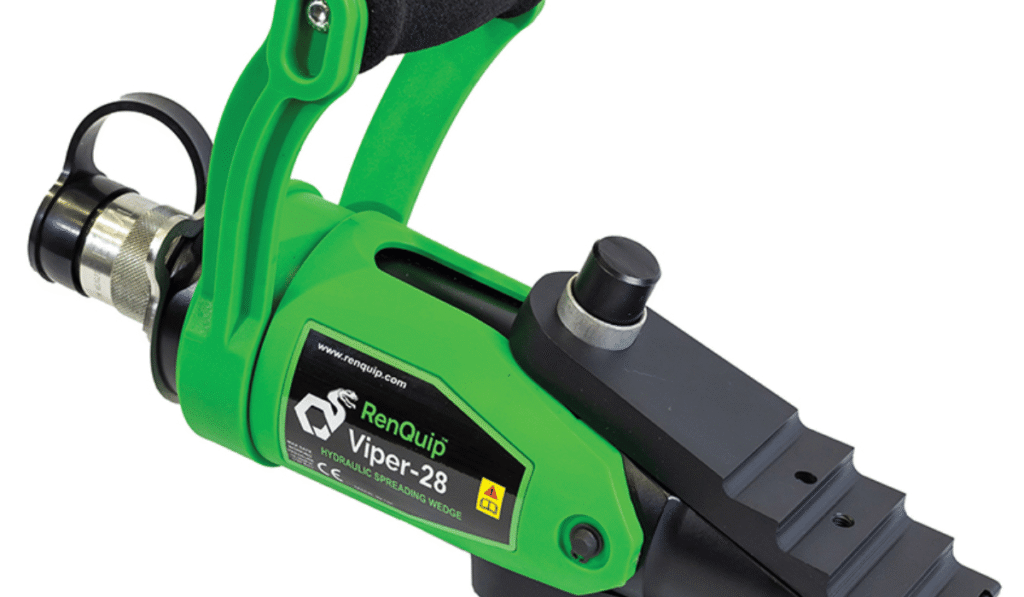

Wedge Spreaders
Wedge-style flange spreaders are versatile tools for general maintenance. They feature specially shaped noses that fit into existing gaps between flanges, usually 1/8″ to 1/4″ wide. The wedge design spreads force evenly across the flange, allowing controlled separation without damage.
Key benefits of wedge spreaders:
- Compatible with standard flange configurations
- Easy to operate with minimal training
- Portable for convenient transport on-site
- Available in multiple sizes for various flange dimensions
No-Gap Spreaders
No-gap flange spreaders work when flanges are tightly sealed with no clearance. These tools use collet systems that grip bolt holes to create initial separation. Each no-gap spreader is made for specific flange sizes and bolt patterns, ensuring safe, effective operation.
No-gap spreaders are ideal for situations where:
- Flanges have zero clearance between surfaces
- Precise bolt hole alignment is critical
- Maximum spreading force is required
- Standard wedge spreaders cannot gain initial grip
In addition to selecting the right flange spreader, consider if flange alignment tools are needed to ensure proper bolt alignment. This prevents stress on flanges during maintenance.
Why Choose Hydraulic Flange Spreaders?
Hydraulic flange spreaders improve safety and efficiency compared with manual methods. They eliminate the hazards of hammering and wedging, providing controlled force that reduces the risk of tool slippage and operator injury. These tools also speed up maintenance, completing flange separation quickly.
Operation is simple and requires minimal effort. Once positioned, the hydraulic system does the heavy lifting, reducing physical strain and fatigue. Operators can also control the spreading force precisely, achieving the exact gap needed for any maintenance task.
Key Applications for Flange Spreader Tools
Professional flange spreaders excel across diverse industrial maintenance scenarios:
- Valve replacement – Safe y separate flanges for valve swap-outs without damaging surrounding equipment
- Gasket service – Create adequate clearance for gasket removal and installation
- Pipeline maintenance –Handle large-diameter pipe flanges in confined spaces
- Emergency repairs – Quickly access internal components during unplanned shutdowns
- Preventive maintenance – Facilitate routine inspections and component servicing
How to Select the Right Flange Spreader?
Choosing the optimal flange spreader means considering different factors:
- Application type – Determine which type best suits your typical maintenance requirements. Evaluate the flange sizes and configurations you encounter most frequently.
- Force requirements – Calculate the spreading force needed for your applications. Stubborn, corroded flanges may require tools capable of generating substantial force.
- Usage frequency – Consider how often you’ll use the tool. Heavy-duty models offer superior durability for frequent operation. Lighter units suit occasional maintenance needs.
- Portability needs – Assess worksite accessibility and transport requirements. Compact, lightweight designs facilitate movement in confined spaces.
- Maintenance environment – Factor in environmental conditions that may influence tool selection. This includes temperature extremes, corrosive atmospheres, and space constraints.
Safety Benefits of Using Professional Flange Spreaders
Professional flange spreaders greatly improve workplace safety over traditional methods. Hydraulic control eliminates the risks of hammering, preventing tool slippage and injuries. Operators can maintain safe distances while applying substantial spreading force with precise pump control.
Ergonomic designs reduce physical strain and help prevent repetitive stress injuries. Built-in safety features, such as pressure relief systems and secure positioning mechanisms, provide extra protection. ALLTORC’s RENQUIP flange spreaders combine these safety benefits with reliable performance, rigorously tested for demanding industrial applications.
