Hydraulics power the machinery that drives industries like construction, manufacturing, and transportation. At the heart of these systems are components working silently to ensure efficiency, precision, and safety. One such critical component is the hydraulic cylinder valve block. Often overlooked but vital, this small yet powerful device controls the flow of hydraulic fluid, enabling complex machinery to operate smoothly and respond accurately.

The following sections explore the intricacies of hydraulic cylinder valve blocks, their functions, and their significance in modern hydraulic systems.

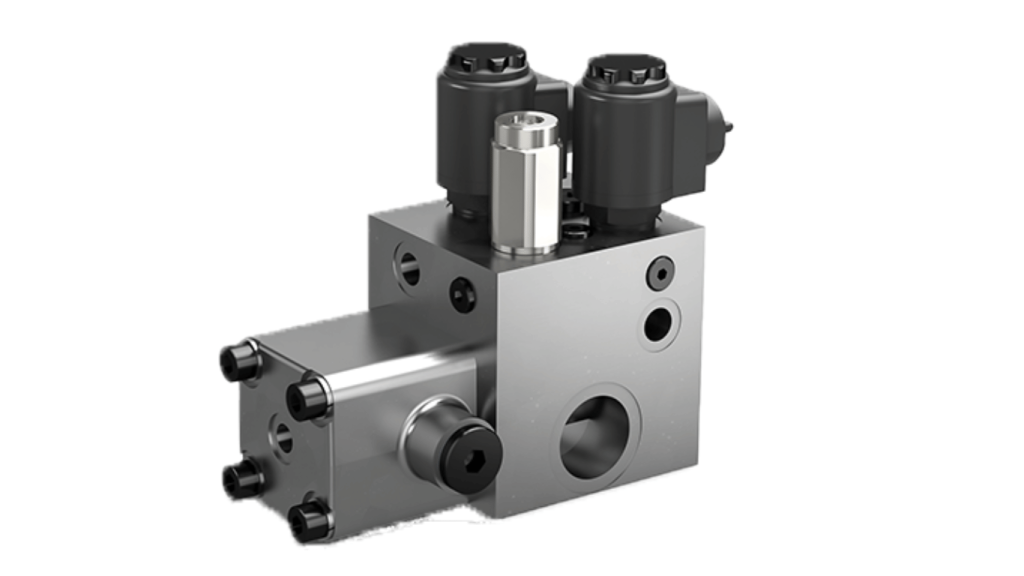

What Is a Hydraulic Cylinder Valve Block?

Also known as a control valve or manifold, a hydraulic cylinder valve block is like a central hub in a hydraulic system. Its main function is to manage the flow and pressure of hydraulic fluid. A valve block typically contains multiple valves to direct the fluid to different parts of the hydraulic system.

Each valve serves a specific purpose. For example:

  • Directional control valves control the direction of fluid flow. These valves are often spool-type and determine whether a cylinder extends or retracts.
  • Pressure control valves regulate system pressure. They ensure the system operates safely and efficiently.
  • Flow control valves manage the fluid flow rate and control the speed of hydraulic actuators.

How Do Hydraulic Cylinder Valve Blocks Work?

Hydraulic valve blocks operate on the principle of fluid power. They control the flow of hydraulic fluid (typically oil) to actuate cylinders, motors, or other hydraulic components. Apart from the valves themselves, a valve block is made up of these components:

  • Valve body – The main structure that houses all the other components. The body is typically made of steel or aluminum.
  • Spools – Moving parts within directional control valves that redirect fluid flow.
  • Solenoids – Electromagnetic actuators that control valve movement in electrically operated systems.
  • Ports – Openings for fluid inlet, outlet, and connection to hydraulic cylinders or other components.
  • Seals – To prevent leakage and maintain system pressure.

Why Are Hydraulic Cylinder Valve Blocks Important?

Based on their construction and operation, it’s clear that hydraulic valve blocks play a central role in hydraulic systems. These unassuming devices meet the demands of hydraulic systems stride-for-stride:

Centralized Control

As mentioned previously, valve blocks are central hubs. Technicians can manage multiple hydraulic functions from a single point. This simplifies system operation and control.

Space Efficiency

By combining several valves into one compact block, valve blocks help to minimize the hydraulic system’s overall size. The system becomes more space-efficient and easier to integrate into machinery.

Simplified Maintenance

Their consolidated design doesn’t just save on size. It also makes servicing and troubleshooting straightforward. With all the parts together, it reduces downtime and simplifies repairs. This is apparent, especially when compared to systems with separate valve components.

Improved Performance

A custom-designed valve block can enhance your system’s efficiency and responsiveness if you have a specific application.

Reduced Leakage Points

With fewer external connections, valve blocks significantly lower the risk of hydraulic fluid leaks. In turn, this increases the system’s overall reliability and safety.

What Industries Rely on Hydraulic Valve Blocks?

Many applications and industries rely on valve blocks to keep their hydraulics running smoothly. In aerospace, these blocks manage critical functions like landing gear and flight control surfaces, while in mining, they power heavy equipment used for excavation and material handling. The oil and gas industry depends on valve blocks for well control equipment and offshore platform operations, highlighting their role in safety and efficiency.

Manufacturing facilities use hydraulic valve blocks in presses, injection molding machines, and robotic systems to maintain consistent production processes. In construction, they’re vital for operating earthmoving equipment and cranes, and in agriculture, they support the hydraulic needs of tractors and harvesting machinery. Even the marine industry relies on them for steering systems and deck equipment on ships.

How Do You Choose the Right Hydraulic Valve Block?

A specific application requires a specific hydraulic valve block solution. Using a valve block that can’t handle the fluid’s pressure or flow can result in erratic operation, damaged components, and even safety hazards.

So, to avoid these scenarios, an appropriate hydraulic valve block should meet the following criteria:

  • Pressure rating – Your chosen block must handle the system’s maximum pressure.
  • Flow rate – The block should accommodate the required flow rate, often measured in GPM (gallons per minute).
  • Number of functions – Determine how many separate operations the block needs to control.
  • Environmental conditions – Consider temperature ranges, exposure to corrosive substances, and potential contaminants.
  • Actuation method – Choose between manual, hydraulic pilot, or electric solenoid operation.
  • Port sizes and configurations – Ensure the block’s compatibility with existing system components.
  • Material – Steel blocks offer durability, while aluminum provides weight savings.

How to Maintain Hydraulic Valve Blocks?

Finally, hydraulic valve blocks need proper maintenance to ensure their longevity and performance. Try these maintenance best practices to get the most from your valve blocks:

  • Check for leaks, wear, and proper operation.
  • Monitor hydraulic oil condition to prevent contamination-related issues.
  • Use high-quality filters to protect valve components from particulate damage.
  • Replace worn seals and other components before they cause a system failure.
  • Ensure operators understand proper usage to prevent overloading or misuse.

The Indispensable Role of Hydraulic Valve Blocks

As industrial applications continue to demand more, hydraulic cylinder valve blocks will become more important. From the mining pits to aerospace applications, these compact yet powerful components drive innovation and performance across various industries.
