AHP-BTU Range

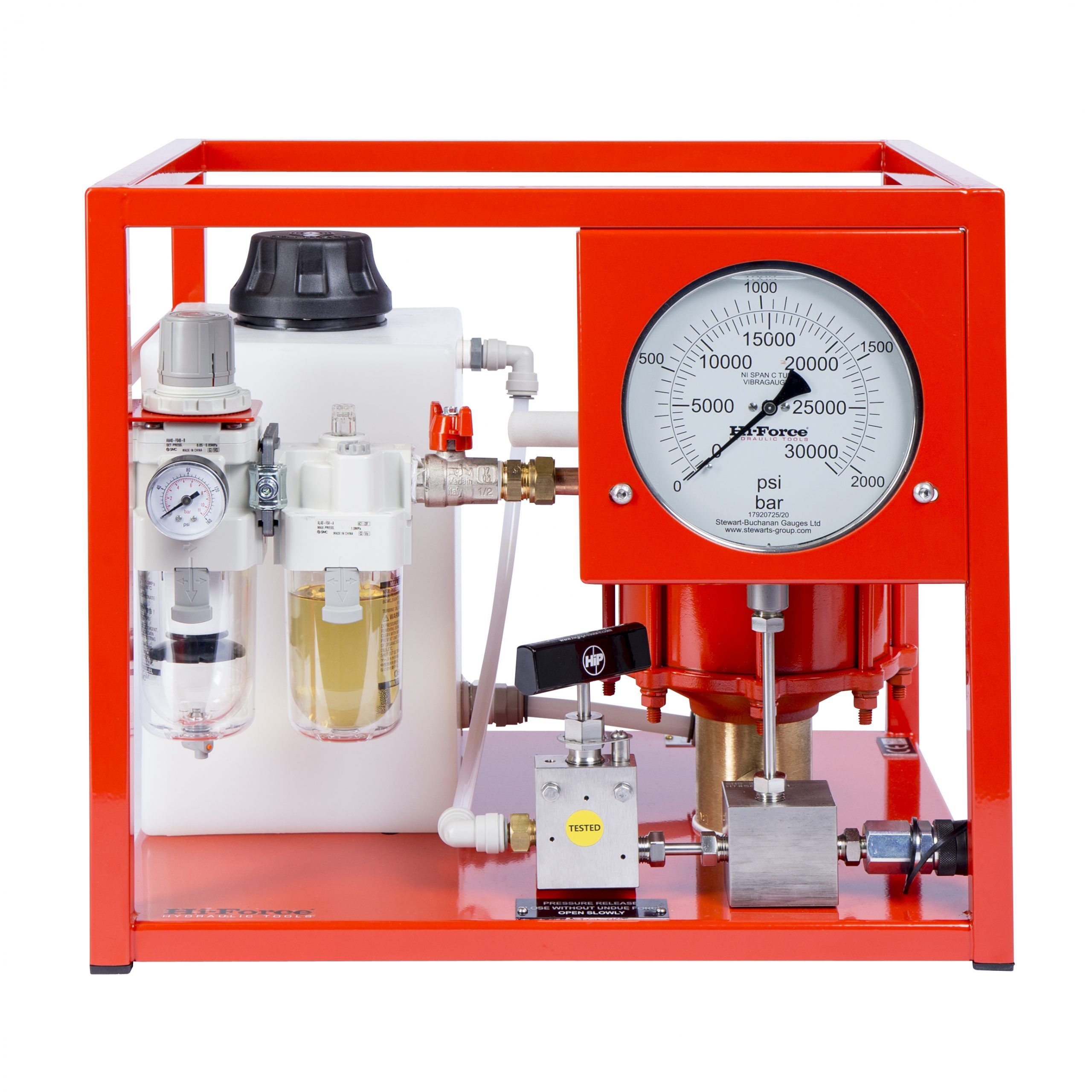

The Hi-Force AHP-BTU range of air driven hydraulic pumps is compatible for use with Hi-Force STS, SBT and STU bolt tensioners as well as HTN hydraulic nuts. The pump unit is easy to operate and is supplied complete with a glycerine filled vibra-gauge and quick release outlet coupling. The complete system, including an air inlet filter, regulator and lubricator unit is fitted in a robust stainless steel frame.

-Air driven hydraulic bolt tensioner pump operates from standard 100 psi air supply

-Working Pressure 21,750 PSI

-Fitted with glycerin filled vibra-gauge and quick connect high pressure outlet coupling

-Airline filter regulator lubricator unit fitted as standard

Hi-Force Hydraulic Tensioner Pump Tear Sheet

Model Number	Usable Oil Capacity gallons	Oil Flow Per Stroke cm3	Outlet Coupler	Air consumption	Weight lbs
AHP275BTU	1.98	0.1	STFC4	28 scfm (0.79 m3/min)	44.1
AHP2-237BTU	1.98	0.37	STFC4	56 scfm (0.79 m3/min)	52.9

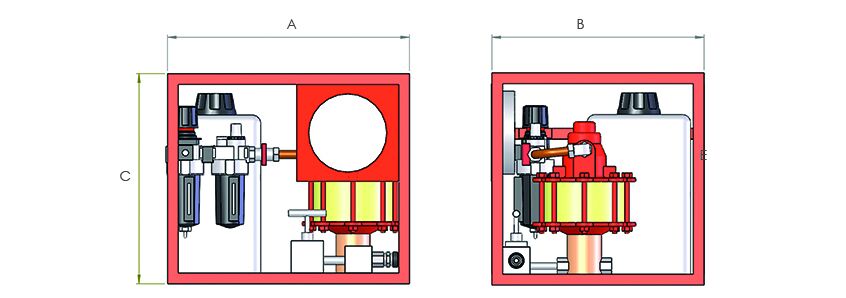

Model Number	Dimensions in inch
	A	B	C
AHP275BTU	17.73	15.56	15.56
AHP2-237BTU	17.73	15.37	18.32
