AT9K 9 Ton Hydraulic Flange Aligning Tool

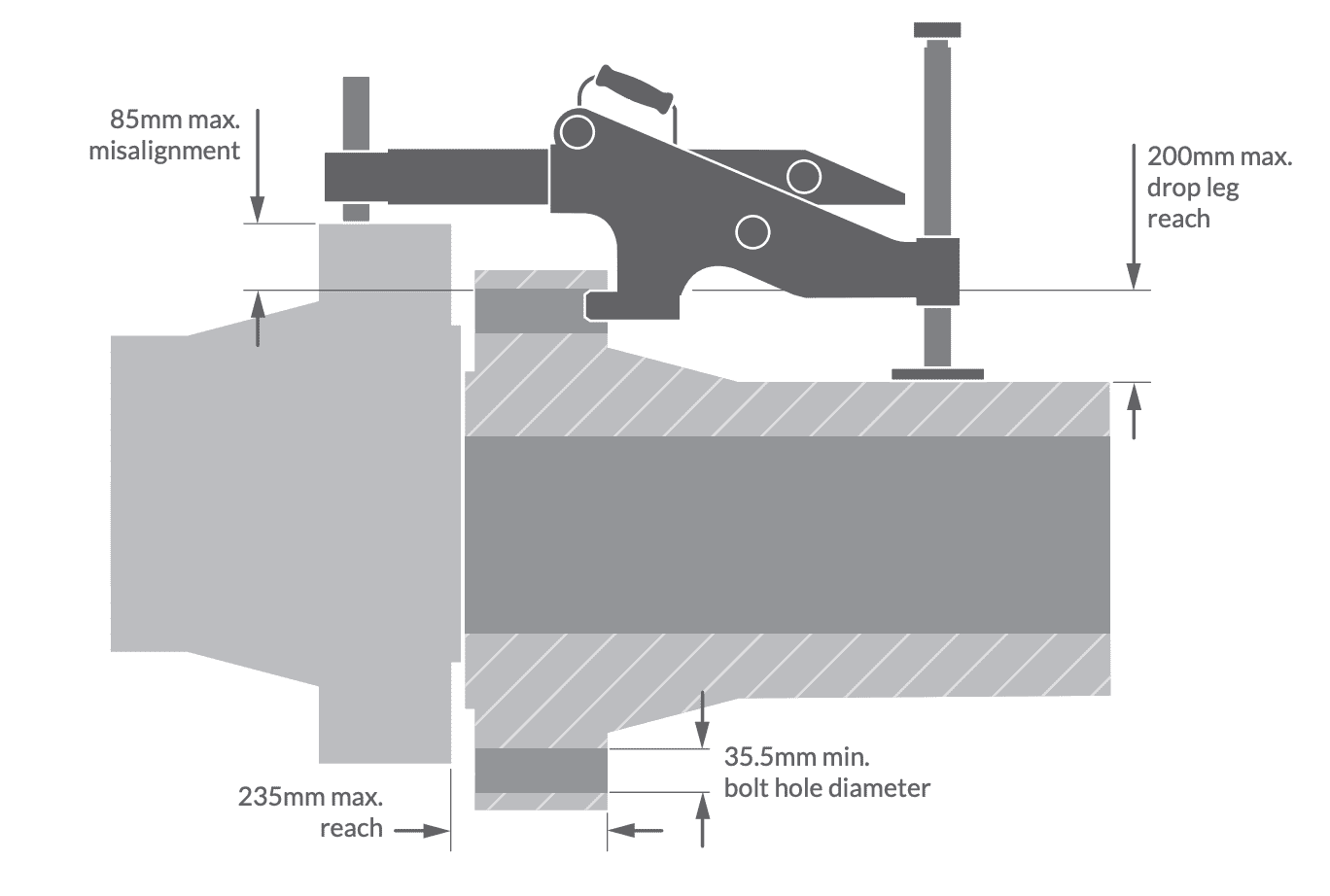

The AT9K is a Hydraulic flange alignment tool designed for medium and large flanges that is used to correct: • linear misalignment (when the axis of the two flanges are not aligned). • rotational misalignment (when the axis of the flanges are aligned but the bolt holes are not). The AT9K can produce a maximum reaction alignment force of 9 tons when the maximum hydraulic pressure of 10,000psi is applied to the tool.



AT9K Benefits & Features

• Tool weight 32 lbs

• No external anchor points or rigging required.

• Can be used to prevent misalignment during flange joint maintenance.

• Bearings rated to provide overload warning.

• 100% Load/Pressure tested and certified.

• Prevents gasket pinching during flange joint assembly.

• High durability High Quality low Maintenance design.

• Supplied with pressure rated and capacity matched pump for safety.

• Robust Moulded Case for easy transportation and storage.

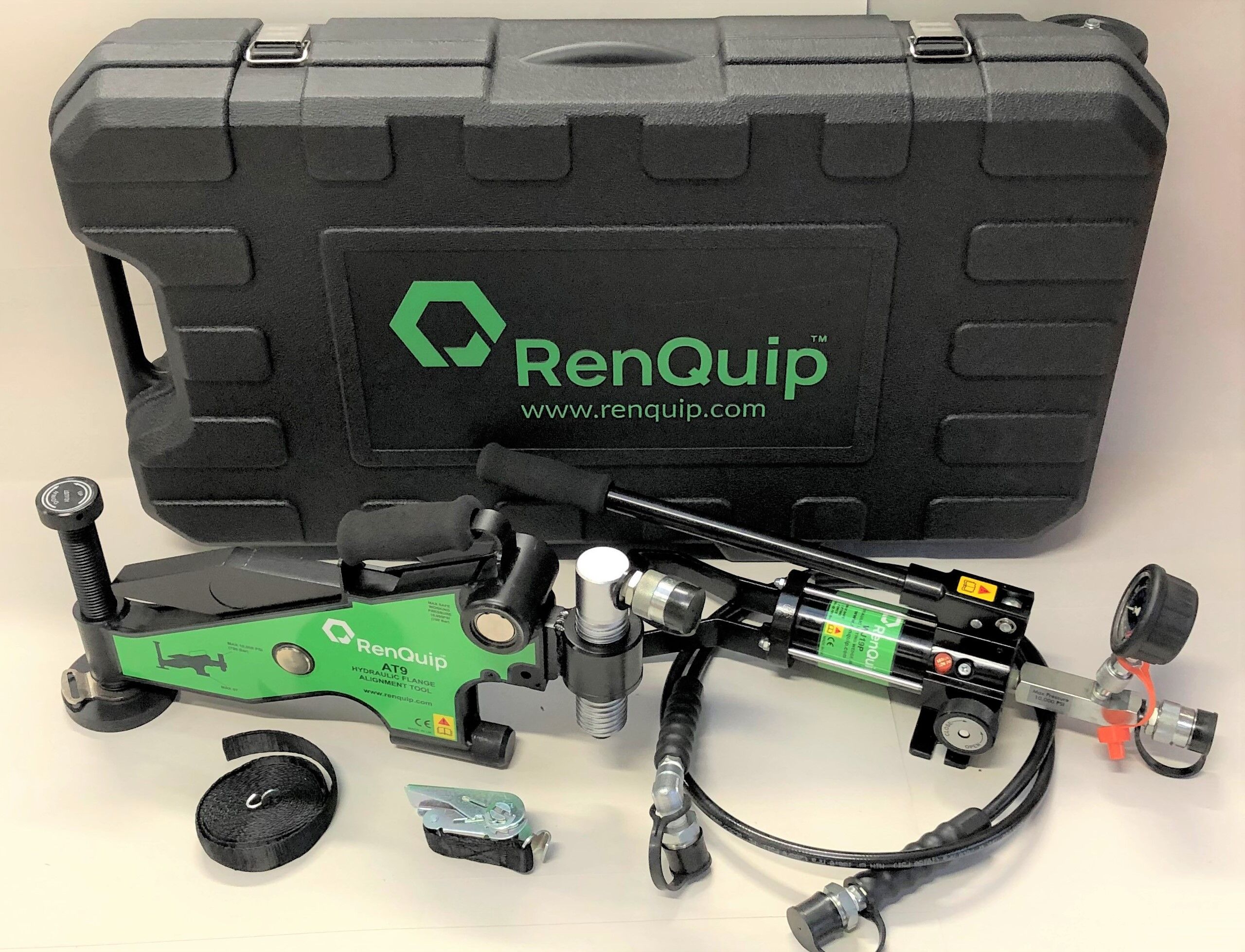

Kit Contents

• 1 x AT9 Tool

• 1 x 10,000psi  Hydraulic Sealed Hand Pump

• 1 x 10,000psi  Hydraulic Hose 2.1M long

• 1 x 10,000psi Hydraulic Gauge

• 1 x Ratchet and Strap

• 1 x Instruction Manual

• 1 x Robust moulded carry case

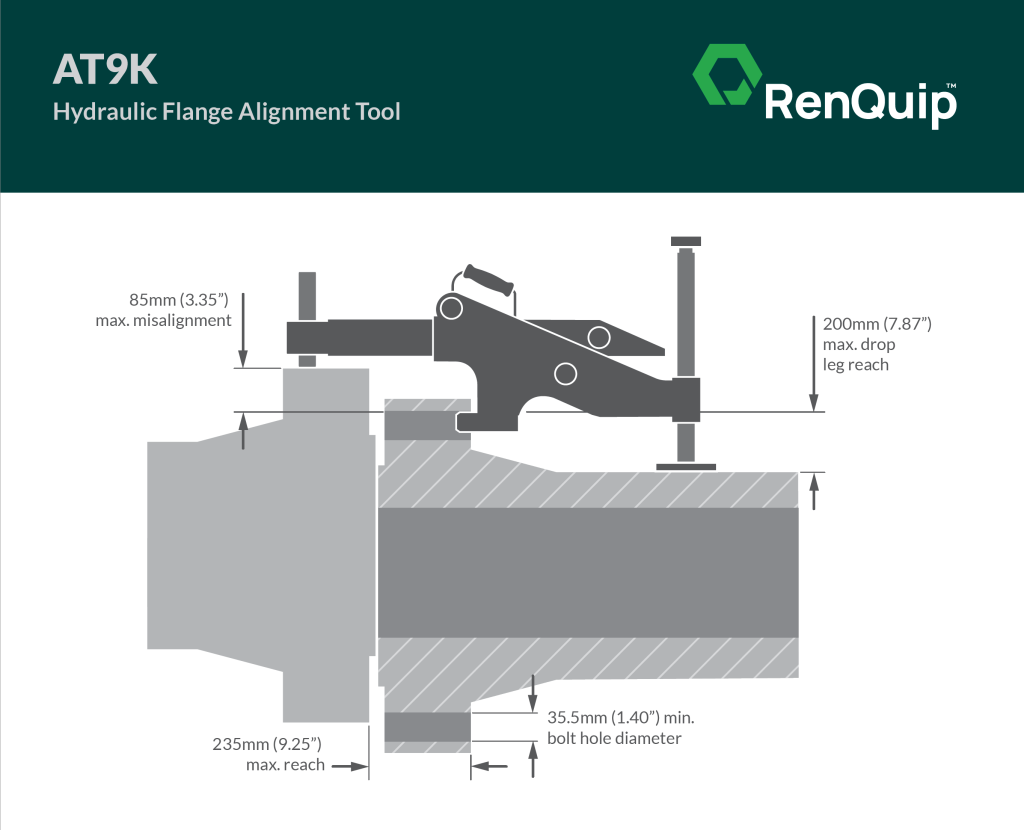

View the Renquip AT9K Hydraulic Flange Alignment Tool Tear Sheet
