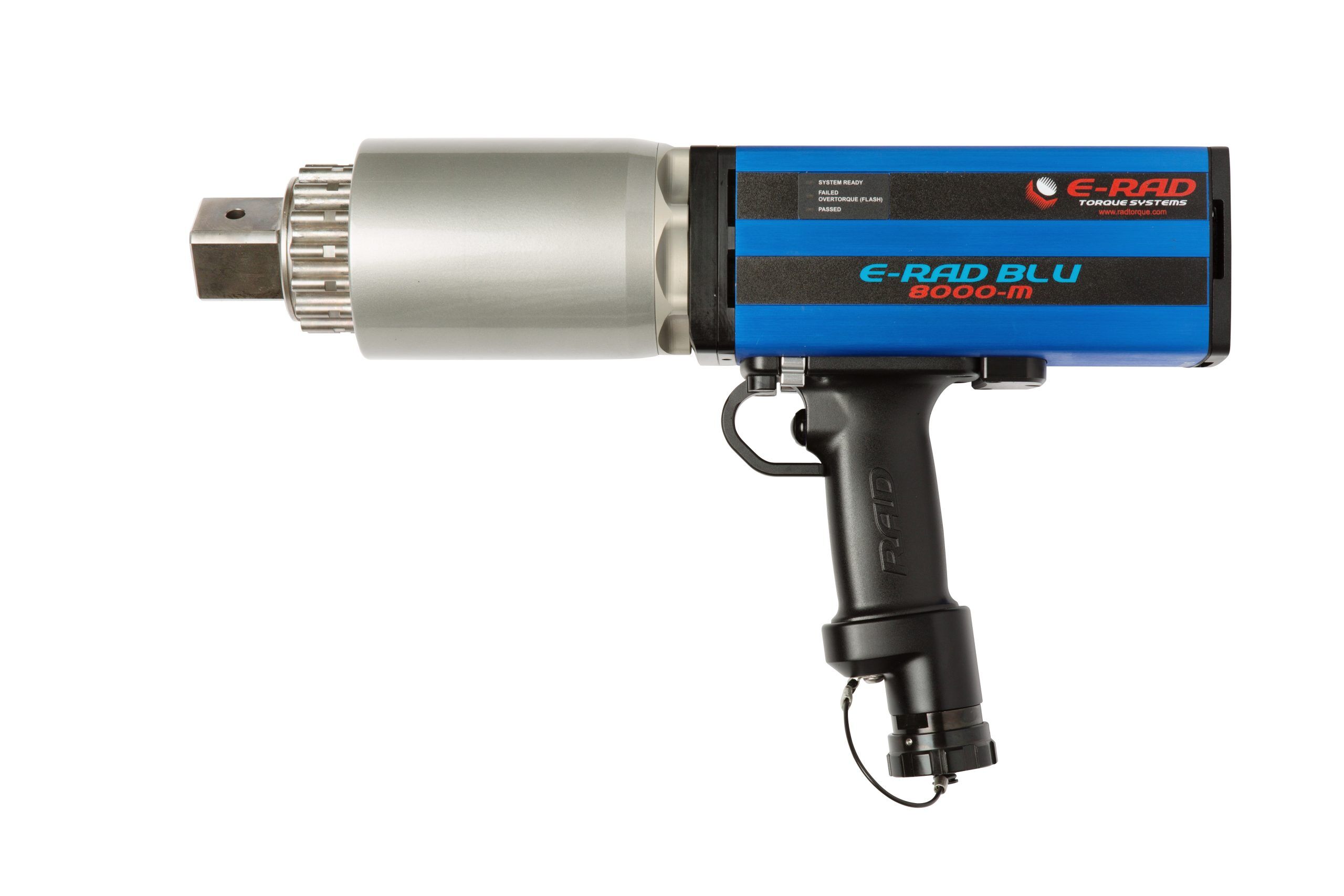

E-RAD BLU series precision torque wrench tools are designed to provide a high degree of accuracy (+/- 3% on target) for high torque assembly applications. Our patented and extremely advanced electronic pistol grip torque wrench combines the legendary RAD gearbox design and AC Servo motor technology to reduce bolting time by up to 300% as compared to conventional hydraulic wrenches.

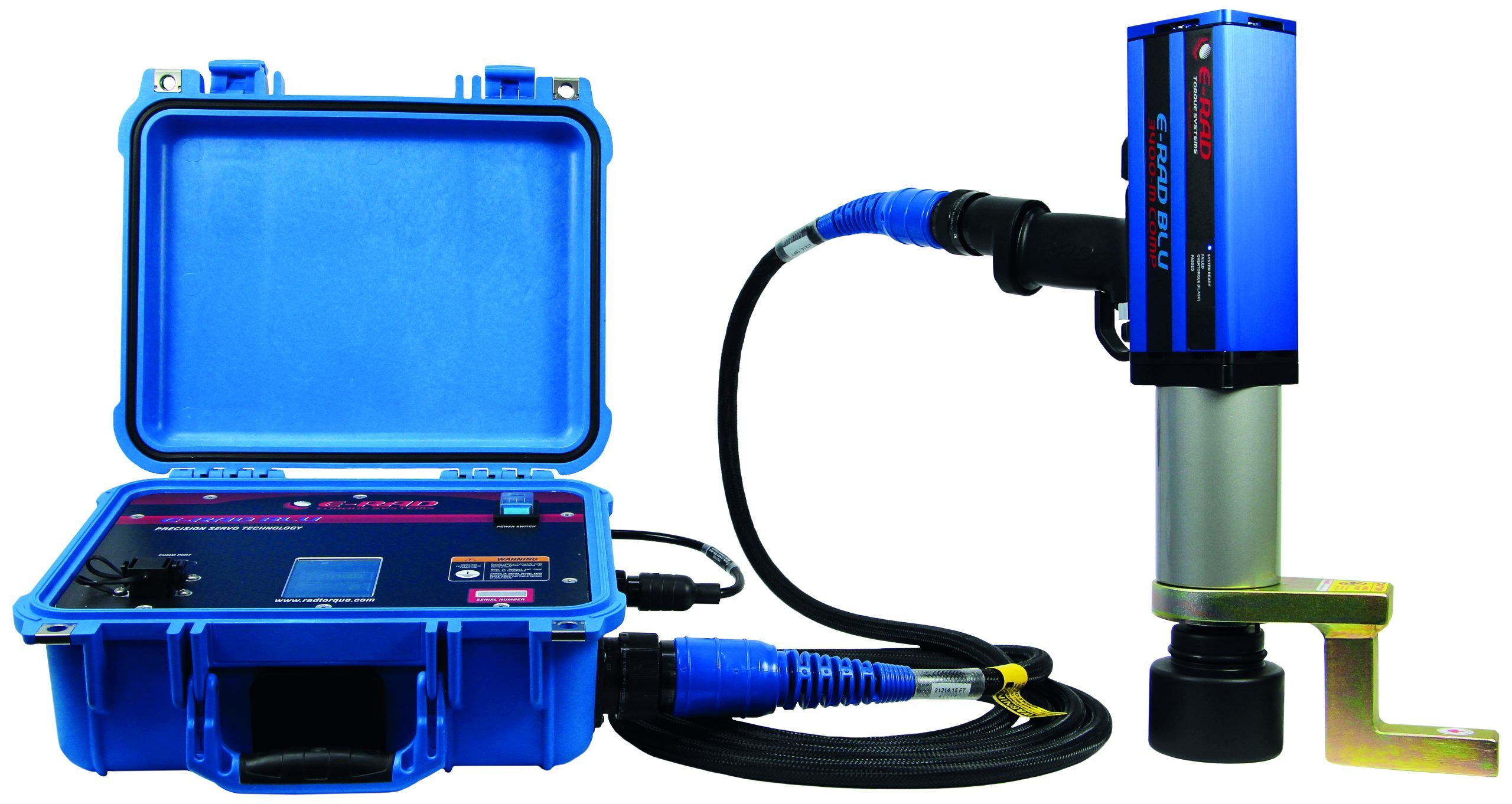

This tool is capable of data collection and torque/angle measurement, ultimately offering affordable solution for electronic bolting needs. It also includes a console module with a digital readout.
E-RAD BLU Tool Features:
– Multiple models of wrenches can be used in combination with one controller
– Bluetooth connectivity with RAD Smart Socket for transducer verified joint calibration
– Highly advanced Data Logging and Tool Management features
– Military grade single cable and connector system
– Available in 90 degree gearbox
– E-RAD BLU & Smart Socket™
The E-RAD BLU series is Bluetooth compatible, which can be used in conjunction with a RAD Smart Socket™ for field and transducer verification. This allows the E-RAD to be specifically calibrated on different joint types, as the E-RAD will follow the smart socket reading. (Please note the RAD Smart Socket is not included and must be ordered separately).
With a comprehensive selection of RAD GUNS, Alltorc is here to assist with any queries you have.
VIEW THE E-RAD BLU SERIES TEAR SHEET
| TOOL MODEL | TORQUE RANGE | RPM |
|---|---|---|
| E-RAD BLU 700 | 100-700 ft/lbs. | 20 |
| E-RAD BLU 1500 | 200-1,500 ft/lbs. | 9 |
| E-RAD BLU 2500 COMP | 250-2,500 ft/lbs. | 5.5 |
| E-RAD BLU 2500 COMP – 90 Degree | 250-2,500 ft/lbs. | 6 |
| E-RAD BLU 3000 | 500-3,000 ft/lbs. | 5.5 |
| E-RAD BLU 6000 | 1,500-6,000 ft/lbs | 4 |
| E-RAD BLU 7500 | 1,500-7,500 ft/lbs. | 1.5 |
| E-RAD BLU 11K | 3,000-11,000 ft/lbs | 1.3 |
