FSW17P Flange Spreader with Integrated Pump

The FSW17P flange spreading wedge is powered by a built in 10,000 PSI pump &  can enter a flange joint access gap as small as 0.24” and produce a maximum force of 32.6T when used in pairs (as recommended) to push the mating faces of flanges apart. The FSW17P can create a gap up to 3.19” between flange faces with the stepped blocks fitted facilitating the replacement of gaskets, seal ring’s, or other flange face maintenance and testing.

• 100% Load/Pressure tested and certified
• High durability High Quality low Maintenance design
• Tool weight: 18.7lbs
• Max Spreading force 16.3T  (32.6T when used in pairs)

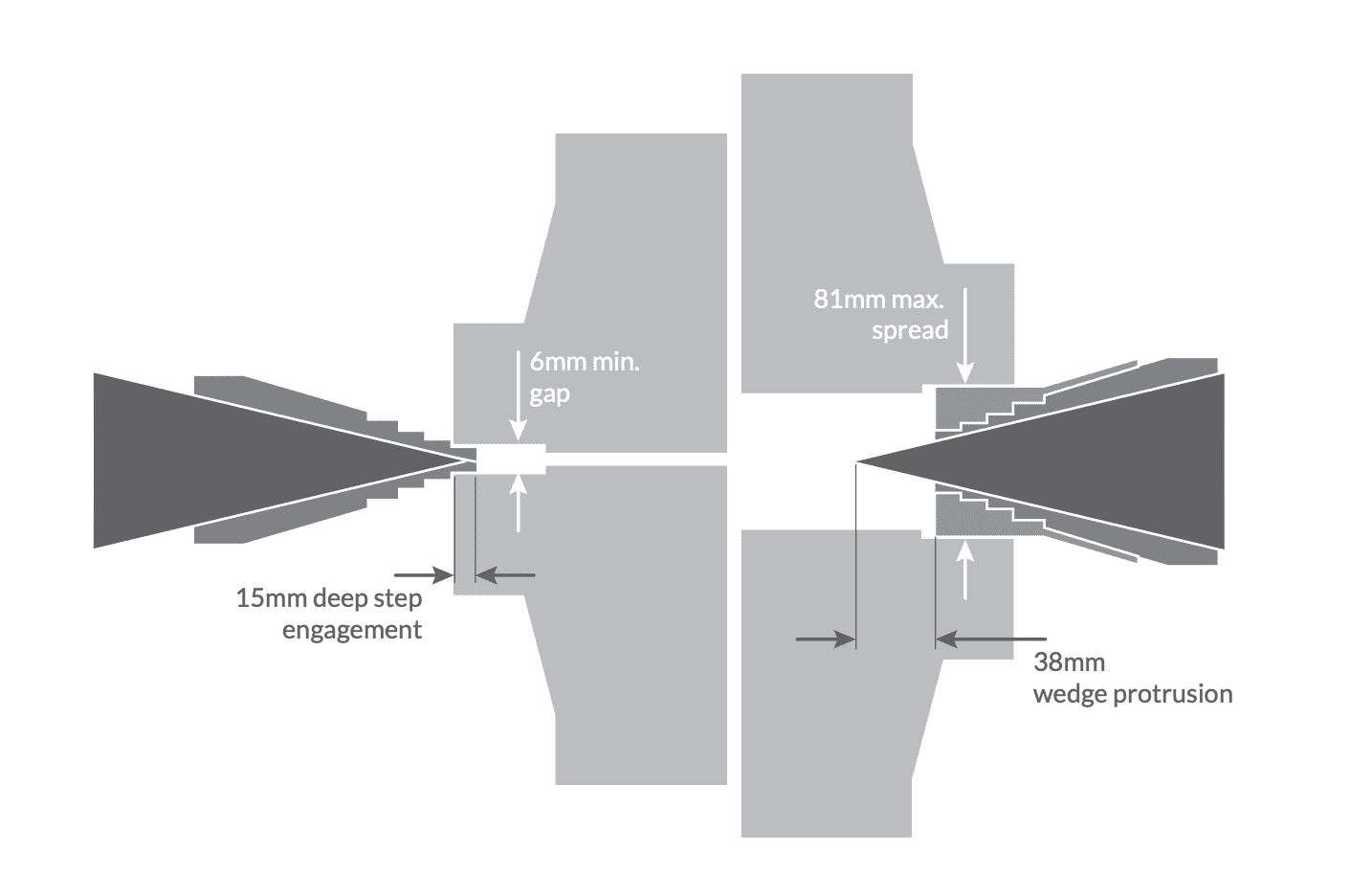

• Spreading distance 0.24” to 3.19” when used with stepped blocks
• Robust Moulded Case for easy transportation and storage

Kit Dimensions

• Kit weight: 28.7lbs
• Kit Dims.: 22.8” x 13.4” x 7.1”
• Tool Weight: 18.7lbs
• Tool Dims.: 3.0” x 6.1” x 17.3”

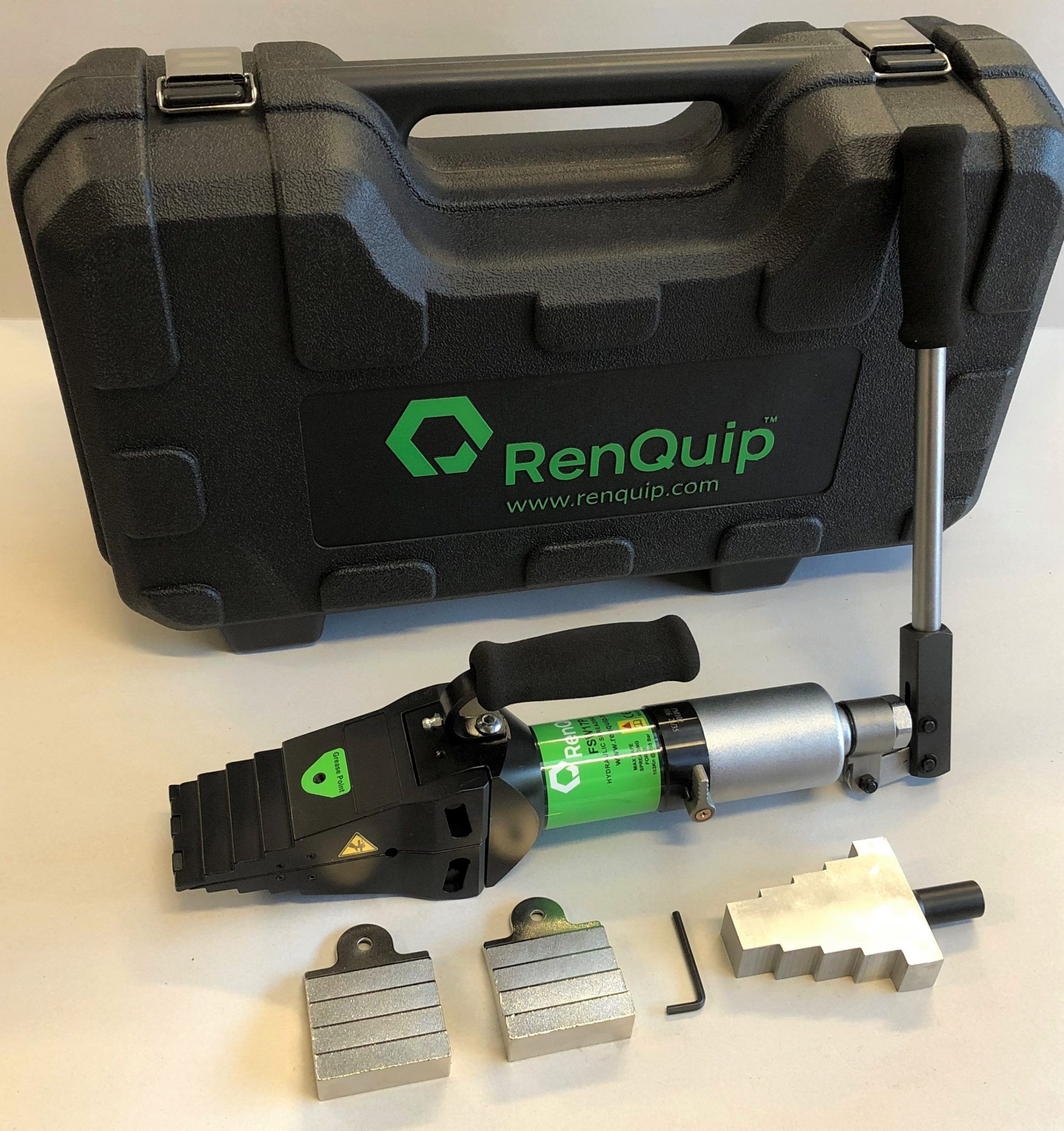

Kit Contents

• 1 x FSW17P Tool with combined hydraulic cylinder and pump unit
• 1 x Pump Actuating Handle
• 1 x Safety Block
• 1 x Safety Lanyard
• 2x Stepped Blocks with securing screws and allen key
• 1 x Instruction Manual
• 1 x Robust moulded carry case
