Model | Drive | Range | Length | Weight | ||||
---|---|---|---|---|---|---|---|---|
(in-lb) | (ft-lb) | (Nm) | inch | mm | lbs | kg | ||
C-4502-4 | 3/4″ | 24 | 50 – 450 | 67- 610 | 36″ | 1050 | 16.00 | 7.27 |
C-6002-4 | 3/4″ | 24 | 100 – 600 | 170 – 850 | 46″ | 1180 | 17.00 | 7.73 |
C-7502-5 | 1″ | 24 | 150 – 750 | 235 – 1050 | 46.5″ | 1180 | 18.00 | 8.18 |
C-10002-5 | 1″ | 24 | 200 – 1000 | 271 – 1356 | 46.5″ | 1900 | 22.00 | 10.00 |

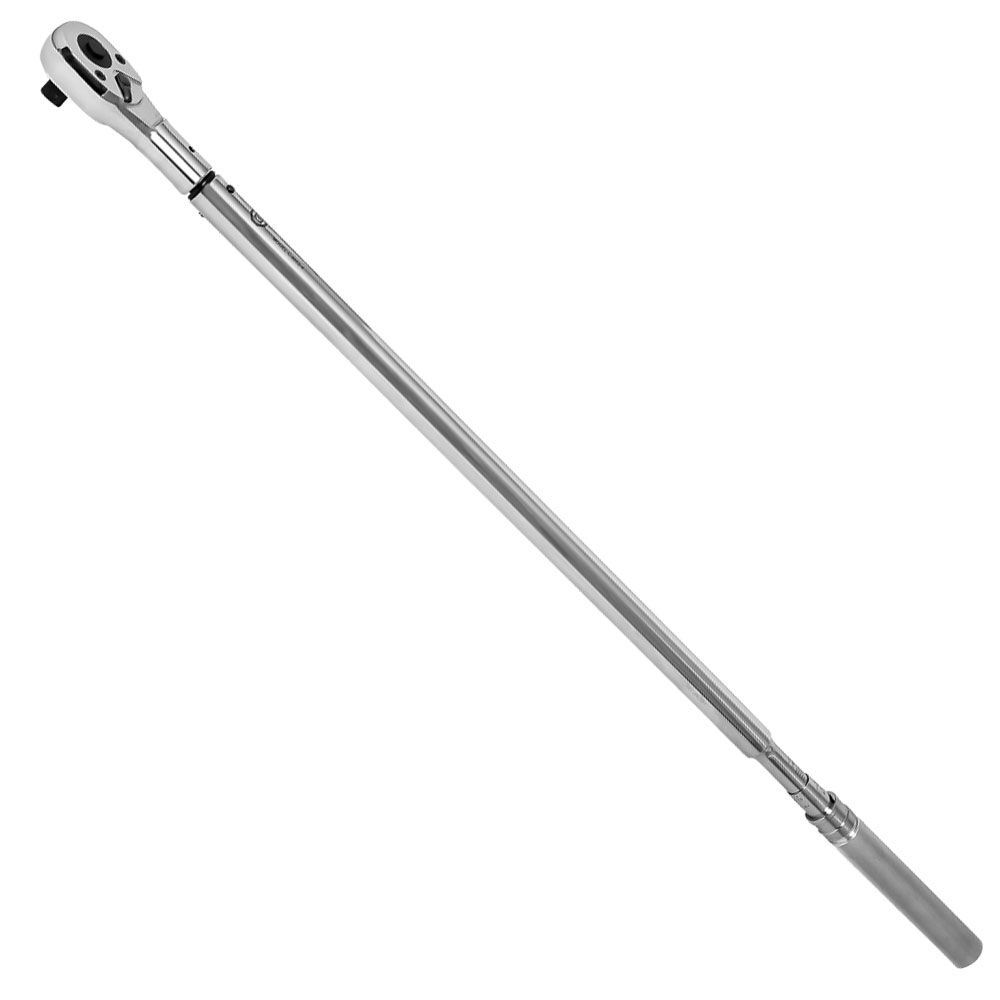

An extension of the adjustable “C” series click-type wrenches, these heavy duty models pick up in torque capacity where the standard sized wrenches leave off. It is intended for very large threaded fastener applications; oil rigs, trucks, AG & off-road equipment, etc. they also exceed the accuracy and range defined by the ASME Standards. Calibrated to ±3% CW and ±5% CCW of scale, they provide the accuracy required of critical larger assemblies with high torque values.
DTS wrenches feature 3/4 and 1 inch drive sizes with a heavy duty 24-tooth ratchet head for long-lasting service. The permanent laser etched micrometer adjustment scale is in both English (ft-lb) and Metric (Nm) units and is easy to read and provides direct setting conversion. Torque range from 50-1,000 ft-lbs and 67 to 1356 Nm.
All “C”series torque wrenches exceed the accuracy and range specified in ASME B107.14-2004. Factory calibration is performed on a torque standard that is traceable to the National Institute and Standards Technology (N.I.S.T.). Actual torque readings and individual serial numbers are included on the calibration certificate for 100% traceability.
