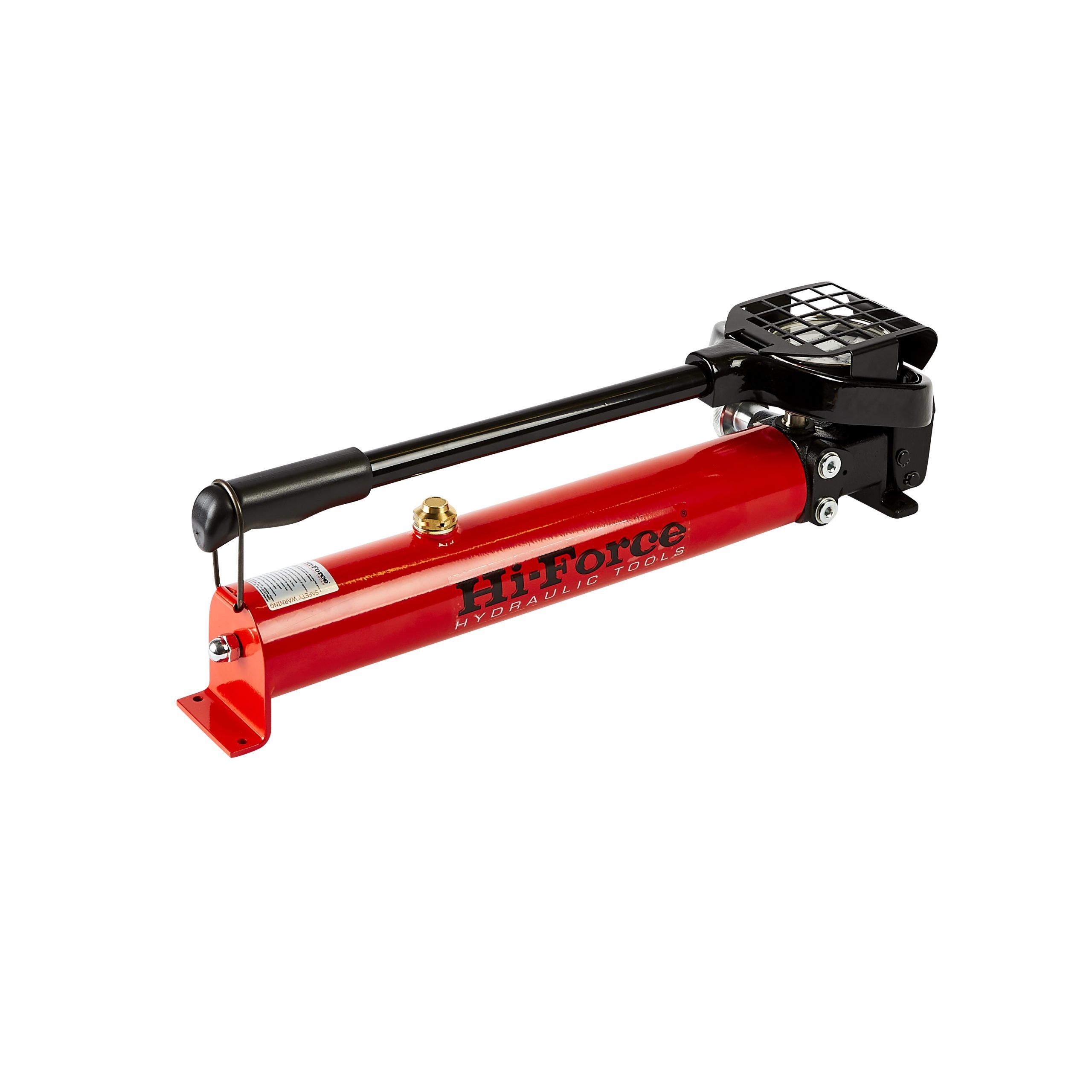

Hi-Force HPX1500BTU manually operated high pressure hydraulic pump is compatible for use with Hi-Force STS, SBT and STU bolt tensioners as well as HTN hydraulic nuts. Lightweight, compact and independent from any required power source, it is suitable for all tensioning applications on-site requiring reliable hydraulic power. The pump is easy to operate and supplied complete with a pressure gauge and quick release outlet coupling.
| Model Number | Usable Oil Capacity inch3 | Displacement per stroke (inch3) | Outlet Coupler | Weight lbs | |
|---|---|---|---|---|---|
| 1st stage | 2nd stage | ||||
| HPX1500BTU | 73.23 | 1.22 | 0.06 | STFC4 | 14.3 |

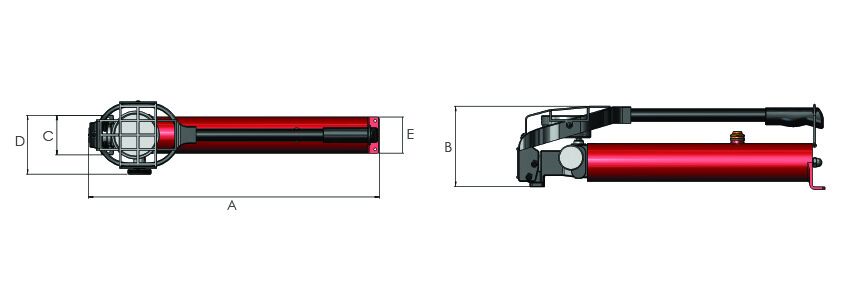

| Model Number | Dimensions in inch | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| HPX1500BTU | 24.23 | 6.34 | 3.31 | 4.93 | 3.01 |
