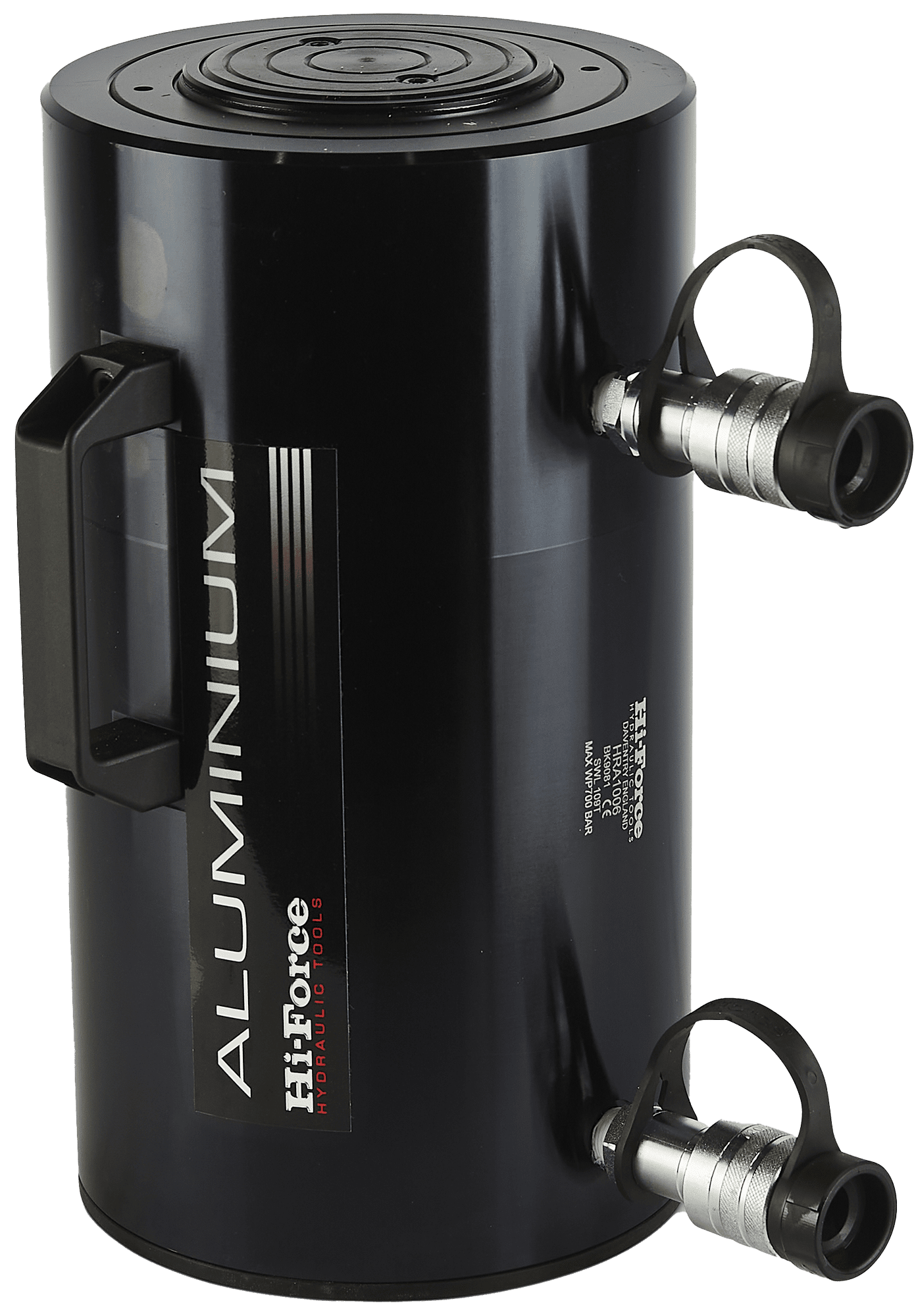

The HRA double acting high tonnage aluminum cylinder range has been specifically designed to offer heavy duty lifting solutions for applications where weight and portability are of prime importance. The double acting design of the cylinders offers higher work output with improved performance and efficiency.
Capacities from 32 to 110 tons
Stroke lengths from 51 to 305 mm
Working pressure 700 bar
Hard anodized piston rod and cylinder for corrosion resistance
Handles fitted as standard on models 50 ton upwards
Low friction bearing surfaces
Anti-extrusion seals
Pressure relief valve on annulus side
Customized and special design cylinders are available on request
| Model Number | Capacity tons | Stroke mm | Oil cap. cm3 | Cyl. eff. area cm2 | Weight kg | Handles |
|---|---|---|---|---|---|---|
| HRA302 | 32 | 51 | 225.3 | 44.2 | 5.0 | – |
| HRA306 | 32 | 152 | 671.5 | 44.2 | 7.0 | – |
| HRA3012 | 32 | 305 | 1347.5 | 44.2 | 10.0 | 1 |
| HRA502 | 51 | 51 | 361.5 | 70.9 | 10.0 | 1 |
| HRA506 | 51 | 152 | 1077.4 | 70.9 | 13.0 | 1 |
| HRA5012 | 51 | 305 | 2161.9 | 70.9 | 19.0 | 1 |
| HRA1002 | 110 | 51 | 785.1 | 153.9 | 22.0 | 2 |
| HRA1006 | 110 | 152 | 2339.9 | 153.9 | 29.0 | 2 |
| HRA10012 | 110 | 305 | 4695.1 | 153.9 | 39.0 | 2 |
| Model Number | Dimensions in mm | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| HRA302 | 204 | 105 | 60 | 50 | 25 | 136 | 35 |
| HRA306 | 305 | 105 | 60 | 50 | 25 | 237 | 35 |
| HRA3012 | 458 | 105 | 60 | 50 | 25 | 390 | 35 |
| HRA502 | 221 | 135 | 79 | 70 | 30 | 141 | 30 |
| HRA506 | 322 | 135 | 79 | 70 | 30 | 242 | 30 |
| HRA5012 | 475 | 135 | 79 | 70 | 30 | 395 | 30 |
| HRA1002 | 258 | 202 | 110 | 100 | 41 | 172 | 30 |
| HRA1006 | 359 | 202 | 110 | 100 | 41 | 273 | 30 |
| HRA10012 | 512 | 202 | 110 | 100 | 41 | 426 | 30 |
