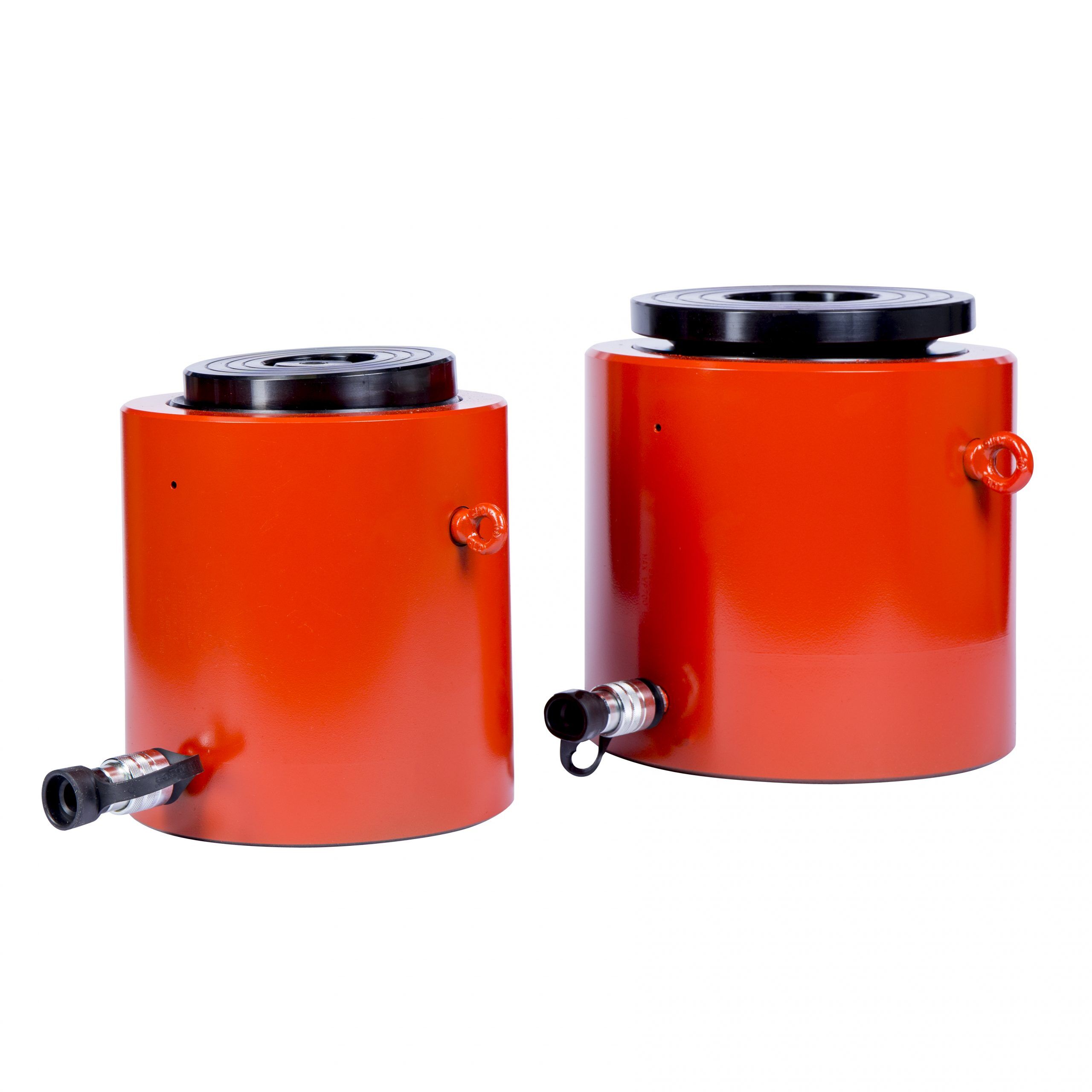

HSG Range

The HSG range of single acting load return construction cylinders is ideally suited for construction, civil engineering, heavy fabrication and maintenance applications. All models are supplied with a tilting saddle fitted as standard and have an overstroke restrictor port to prevent over extension of the piston. Standard range models are featured here however additional capacities and stroke options are available on request.

Capacities from 152 to 326 tonnes
Stroke length 152 mm
Working pressure 700 bar
Single acting, load return
Nitrocarburised cylinder body and piston rod
Overstroke restrictor port
Tilting saddle fitted as standard
Low friction bearing surfaces
Anti-extrusion seals
Customised and special design cylinders are available on request
