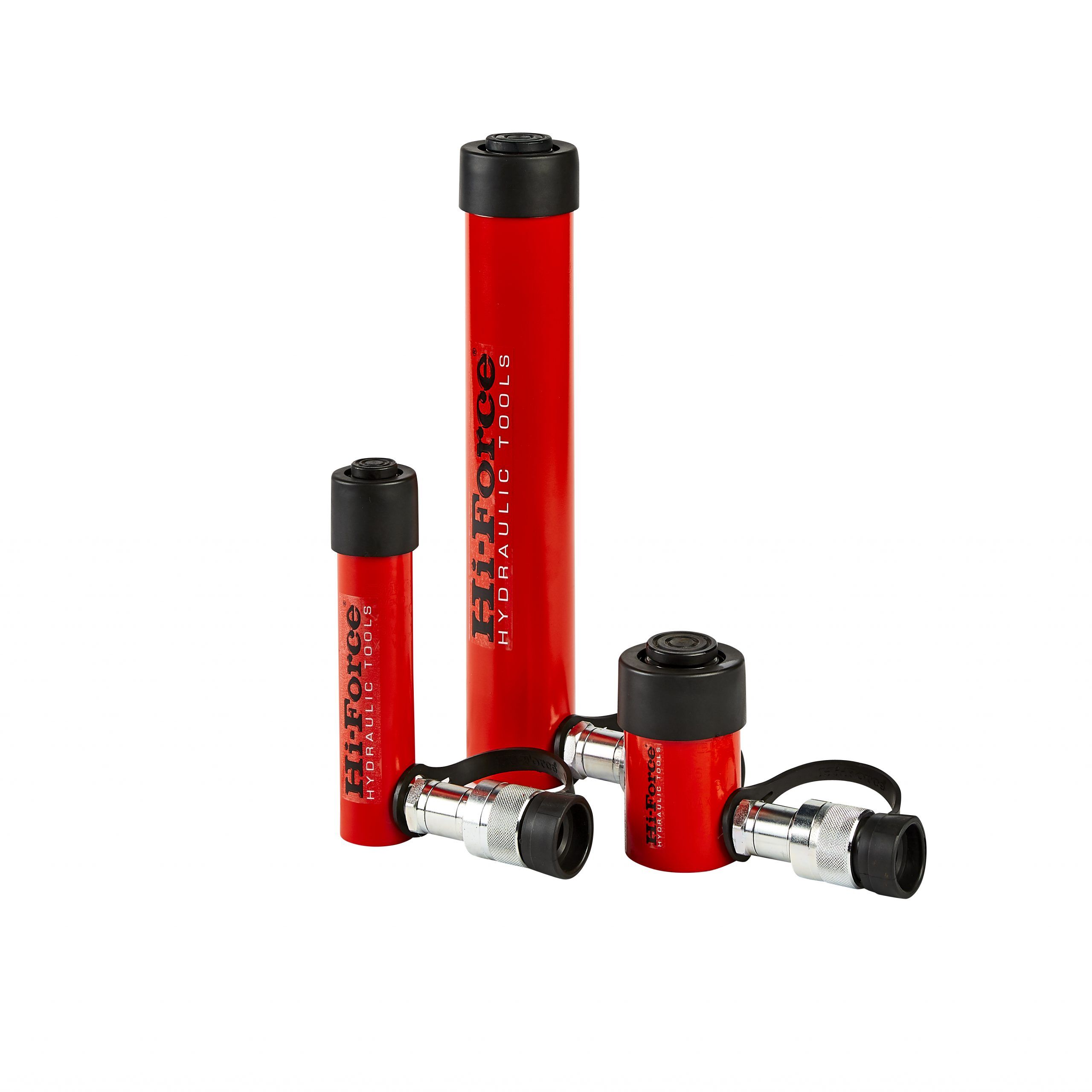

The HSS single acting multi-purpose cylinder range offers the widest choice of stroke lengths and lifting capacities available, and provides an excellent choice for maintenance, production, fabrication and construction applications. All models are provided with a collar thread and thread protector, cylinder base and piston rod mountings for easy fixturing, making the HSS range the most versatile and adaptable multi-purpose cylinders available. Major user industries include power generation, railways, steelworks, mining, shipyards and oil & gas.
Capacities from 4.5 to 109 tons
Stroke lengths from 25 to 457 mm
Working pressure 700 bar
Single assisted return
Nitrocarburized piston rod
Low friction bearing surfaces
Anti-extrusion seals
Collar threads withstand full load
Piston rod thread on all models up to 30 tons
Base mounting holes on all models (except HSS308)
Optional piston rod saddles
Collar thread protector supplied as standard
Customized and special design cylinders are available on request
Download
Enquire
Single Acting Multi-Purpose Cylinders
Model Number | Capacity tons | Stroke mm | Oil cap. cm3 | Cyl. eff. area cm2 | Weight kg |
---|---|---|---|---|---|
HSS51 | 4.5 | 25 | 16 | 6.4 | 1.0 |
HSS52 | 4.5 | 50 | 32 | 6.4 | 1.2 |
HSS53 | 4.5 | 75 | 48 | 6.4 | 1.4 |
HSS54 | 4.5 | 100 | 64 | 6.4 | 1.5 |
HSS55 | 4.5 | 125 | 80 | 6.4 | 1.8 |
HSS57 | 4.5 | 176 | 113 | 6.4 | 2.0 |
HSS59 | 4.5 | 227 | 146 | 6.4 | 2.4 |
HSS101 | 10 | 25 | 36 | 14.4 | 1.8 |
HSS102 | 10 | 56 | 81 | 14.4 | 2.4 |
HSS104 | 10 | 100 | 144 | 14.4 | 3.0 |
HSS106 | 10 | 150 | 217 | 14.4 | 4.2 |

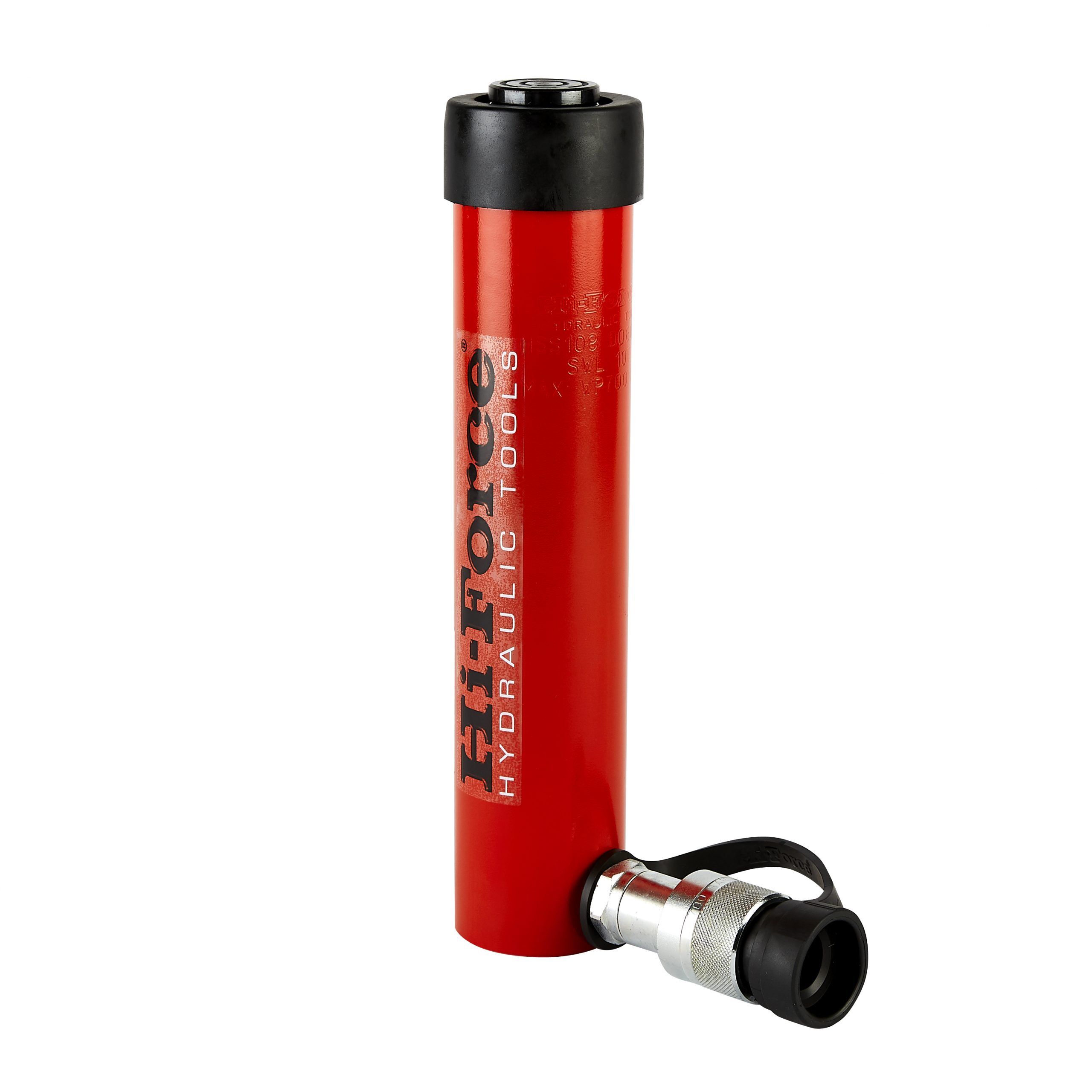

HSS108 | 10 | 206 | 297 | 14.4 | 5.0 |
HSS1010 | 10 | 250 | 361 | 14.4 | 5.4 |
HSS1012 | 10 | 305 | 440 | 14.4 | 6.2 |
HSS152 | 14.5 | 50 | 101 | 20.3 | 3.4 |
HSS154 | 14.5 | 100 | 203 | 20.3 | 5.0 |
HSS156 | 14.5 | 150 | 304 | 20.3 | 6.6 |
HSS1510 | 14.5 | 250 | 507 | 20.3 | 8.8 |
HSS252 | 25 | 51 | 178 | 34.9 | 6.5 |
HSS254 | 25 | 102 | 356 | 34.9 | 8.0 |
HSS256 | 25 | 150 | 524 | 34.9 | 9.6 |
HSS258 | 25 | 203 | 709 | 34.9 | 11.2 |
HSS2510 | 25 | 250 | 874 | 34.9 | 12.6 |
HSS2514 | 25 | 356 | 1242 | 34.9 | 16.8 |
HSS2518 | 25 | 457 | 1597 | 34.9 | 21.4 |
HSS308 | 29 | 205 | 860 | 41.9 | 18.6 |
HSS502 | 50 | 51 | 364 | 71.3 | 13.0 |
HSS504 | 50 | 102 | 728 | 71.3 | 16.8 |
HSS506 | 50 | 152 | 1084 | 71.3 | 20.0 |
HSS508 | 50 | 203 | 1448 | 71.3 | 23.2 |
HSS5013 | 50 | 330 | 2354 | 71.3 | 33.6 |
HSS756 | 73 | 152 | 1561 | 102.7 | 31.0 |
HSS1004 | 109 | 102 | 1565 | 153.4 | 41.6 |
HSS1006 | 109 | 153 | 2347 | 153.4 | 49.8 |
HSS10010 | 109 | 254 | 3896 | 153.4 | 65.5 |

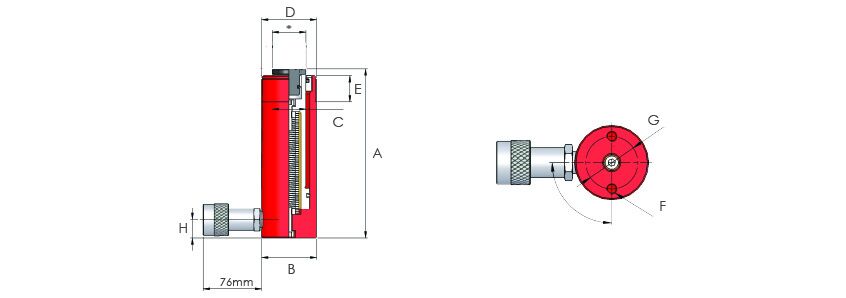

Model Number | Dimensions in mm | |||||||
---|---|---|---|---|---|---|---|---|
A | B | C | D | E | F | G | H | |
HSS51 | 107 | 38 | 24 | 1 1/2″-16un | 28 | M6 | 25 | 19 |
HSS52 | 132 | 38 | 24 | 1 1/2″-16un | 28 | M6 | 25 | 19 |
HSS53 | 157 | 38 | 24 | 1 1/2″-16un | 28 | M6 | 25 | 19 |
HSS54 | 182 | 38 | 24 | 1 1/2″-16un | 28 | M6 | 25 | 19 |
HSS55 | 207 | 38 | 24 | 1 1/2″-16un | 28 | M6 | 25 | 19 |
HSS57 | 258 | 38 | 24 | 1 1/2″-16un | 28 | M6 | 25 | 19 |
HSS59 | 308 | 38 | 24 | 1 1/2″-16un | 28 | M6 | 25 | 19 |
HSS101 | 100 | 57 | 35 | 2 1/4″-14un | 27 | M8 | 40 | 19 |
HSS102 | 131 | 57 | 35 | 2 1/4″-14un | 27 | M8 | 40 | 19 |
HSS104 | 175 | 57 | 35 | 2 1/4″-14un | 27 | M8 | 40 | 19 |
HSS106 | 225 | 57 | 35 | 2 1/4″-14un | 27 | M8 | 40 | 19 |
HSS108 | 281 | 57 | 35 | 2 1/4″-14un | 27 | M8 | 40 | 19 |
HSS1010 | 325 | 57 | 35 | 2 1/4″-14un | 27 | M8 | 40 | 19 |
HSS1012 | 379 | 57 | 35 | 2 1/4″-14un | 27 | M8 | 40 | 19 |
HSS152 | 154 | 70 | 41 | 2 3/4″-16un | 39 | M10 | 48 | 19 |
HSS154 | 204 | 70 | 41 | 2 3/4″-16un | 39 | M10 | 48 | 19 |
HSS156 | 254 | 70 | 41 | 2 3/4″-16un | 39 | M10 | 48 | 19 |
HSS1510 | 354 | 70 | 41 | 2 3/4″-16un | 39 | M10 | 48 | 19 |
HSS252 | 174 | 86 | 54 | 3 5/16″-12un | 49 | M12 | 60 | 25 |
HSS254 | 225 | 86 | 54 | 3 5/16″-12un | 49 | M12 | 60 | 25 |
HSS256 | 273 | 86 | 54 | 3 5/16″-12un | 49 | M12 | 60 | 25 |
HSS258 | 324 | 86 | 54 | 3 5/16″-12un | 49 | M12 | 60 | 25 |
HSS2510 | 374 | 86 | 54 | 3 5/16″-12un | 49 | M12 | 60 | 25 |
HSS2514 | 480 | 86 | 54 | 3 5/16″-12un | 49 | M12 | 60 | 25 |
HSS2518 | 611 | 86 | 54 | 3 5/16″-12un | 49 | M12 | 60 | 25 |
HSS308 | 374 | 102 | 57 | 3 5/16″-12un | 50 | – | – | 50 |
HSS502 | 150 | 127 | 79 | 5″-12un | 55 | M12 | 85 | 20 |
HSS504 | 201 | 127 | 79 | 5″-12un | 55 | M12 | 85 | 20 |
HSS506 | 251 | 127 | 79 | 5″-12un | 55 | M12 | 85 | 20 |
HSS508 | 302 | 127 | 79 | 5″-12un | 55 | M12 | 85 | 20 |
HSS5013 | 429 | 127 | 79 | 5″-12un | 55 | M12 | 85 | 20 |
HSS756 | 272 | 146 | 95 | 5 3/4″-12un | 45 | M12 | 115 | 32 |
HSS1004 | 223 | 185 | 114 | 6 7/8″-12un | 50 | M12 | 146 | 32 |
HSS1006 | 274 | 185 | 114 | 6 7/8″-12un | 50 | M12 | 146 | 32 |
HSS10010 | 375 | 185 | 114 | 6 7/8″-12un | 50 | M12 | 146 | 32 |
