HTWP Range

HTWP Range

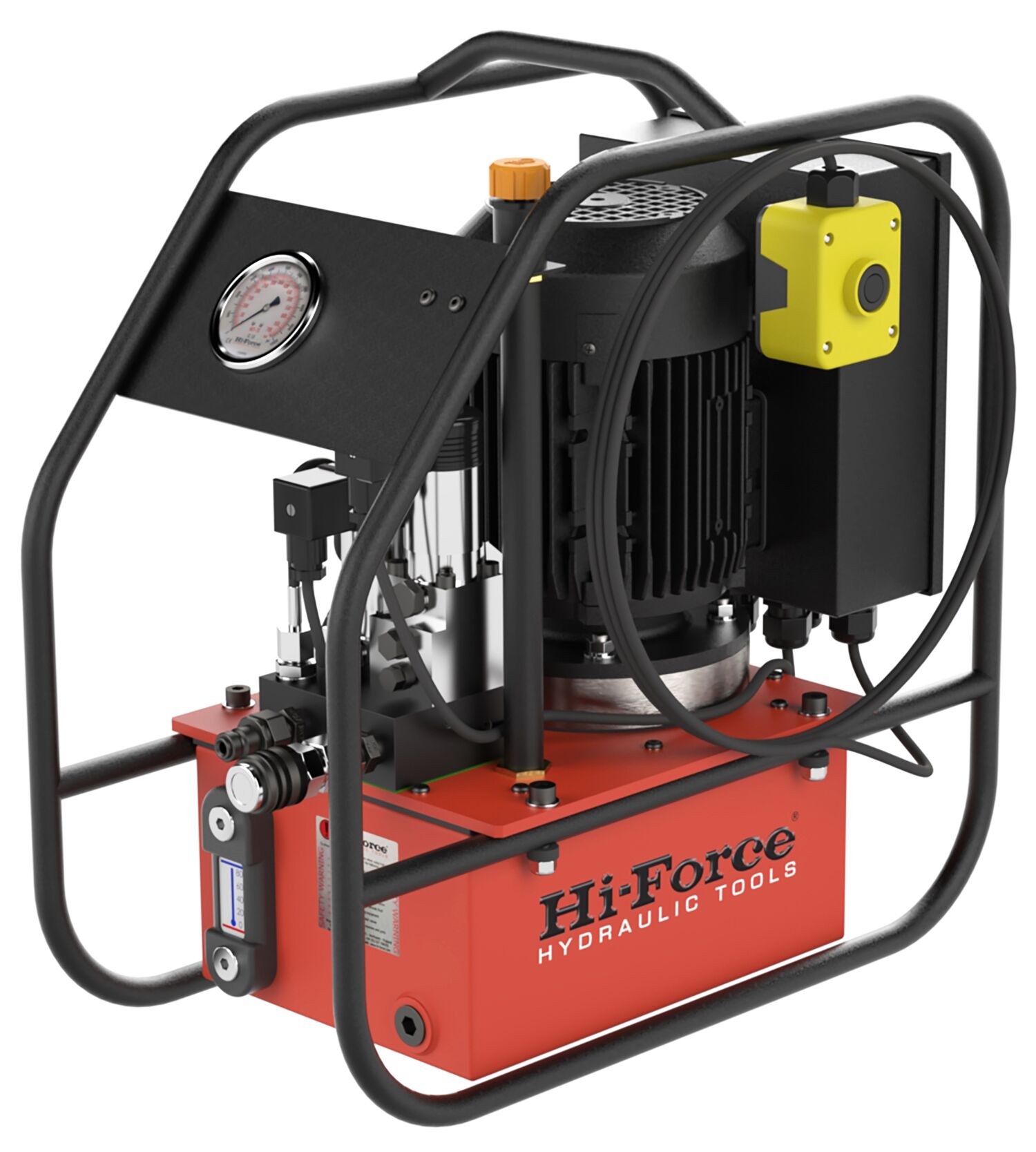

Hi-Force HTWP hydraulic torque wrench pumps are compatible for use with all Hi-Force hydraulic torque wrenches. All models are 700 bar maximum working pressure, fitted with an easily accessible and adjustable torque setting pressure relief valve, and are available as air driven or electric driven pump units. All pumps are supplied with a remote operation, push button hand pendant controller with 3 metres of control line cable. Glycerine filled, easy to read, dual scale (0-700 bar/0-10,000 psi) hydraulic pressure gauges are fitted as standard to all models. Air driven versions also include an integral inline filter, regulator, lubricator system with airline pressure gauge and an exhaust air cooling system.

Working pressure 700 bar
Two stage operation
Air or electric driven options
110, 120, 220 and 230 volt single phase electric motor with auto retract function
Integral oil cooling system in air driven models
Externally adjustable torque setting valve
Reservoir oil sight level gauge
Air pressure gauge and filter-regulator-lubricator unit on air driven models
Oil reservoir capacity 5 litres
Factory fitted roll bar protection frame included

Model Number Power Supply Motor Rating kW Displacement l/min Changeover Pressure bar Weight kg
low pressure high pressure
HTWP2140P 7 bar 1.50 6.1 0.51 60 28.0
HTWP2141AR 110 volt 0.75 3.7 0.34 60 34.0
HTWP2141ARH 120 volt 0.75 4.4 0.4 60 34.0
HTWP2142AR 230 volt 0.75 3.7 0.34 60 34.0
HTWP2142ARH 220 volt 0.75 4.4 0.4 60 34.0

Note: Pumps with suffix ‘H’ in the model number are supplied with 60Hz electric motor.

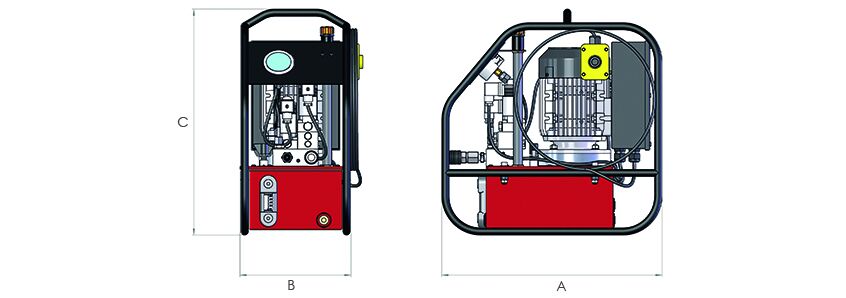

Model Number Dimensions in mm
HTWP2140P 468 205 445
HTWP2141AR 486 245 498
HTWP2141ARH 486 245 498
HTWP2142AR 486 245 498
HTWP2142ARH 486 245 498
