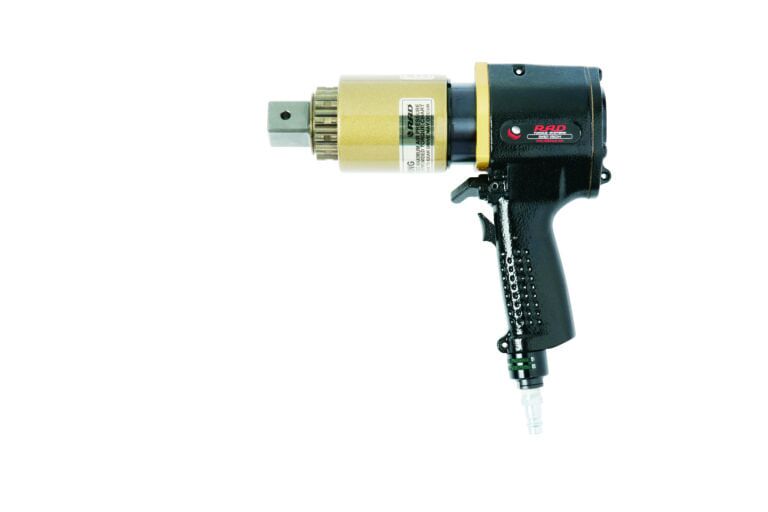

RAD Single Speed
Description
Extreme Duty Torque Wrenches For Heavy Duty Applications!
Also Available With Built-In Transducers – Visit The RAD TV Series
More than 25 years of experience in gearbox engineering and design has brought about our latest generation in planetary gearboxes – RAD Single Speed. Designed for extreme duty use in a variety of industries worldwide.
RAD Single Speed Torque Wrench Features:
Reliable and dependable solution for the installation and removal of heavy-duty fasteners.
PATENTED drive system delivering one of the highest power-to-weight ratios of any pneumatic controlled bolting system.
Smooth continuous flow of controlled torque eliminating destructive hammering.
Lightweight ergonomic pistol grip design reducing operator strain and injury; resulting in increased productivity.
Stall type tool capable of accuracy of +/-4%, and repeatability of +/-2%.
Click here to view the RAD Single Speed Tear Sheet.
| TOOL MODEL | TORQUE RANGE | RPM |
|---|---|---|
| 350SL | 50-350 ft/lbs. | 65 |
| 7GX | 100-700 ft/lbs. | 30 |
| 10GX | 200-1000 ft/lbs. | 20 |
| 15DX | 300-1500 ft/lbs. | 10 |
| 25GX | 500-2500 ft/lbs. | 9 |
| 30DX | 900-3000 ft/lbs. | 8 |
| 34GX | 1000-3400 ft/lbs | 12 |
| 50DX | 1500-5000 ft/lbs. | 6.7 |
| 60DX | 2000-6000 ft/lbs. | 6.6 |
| 80DX | 2500-8000 ft/lbs. | 4 |
| 110DX | 4000-11000 ft/lbs. | 3 |
