REACTION ARMS

Description

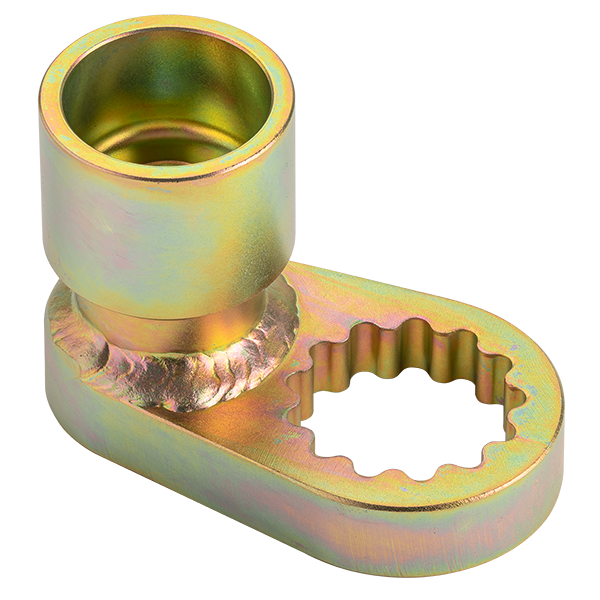

Each RAD tool includes a standard reaction arm. In addition to this, you can order the below special reaction arms to ensure correct reaction for different applications. If you have any specialized applications where a custom reaction arm might be necessary, please contact us and we will work with our engineering department to design and provide the right arm for you.

Pneumatic Series Standard Deep Socket Double Ended Arm Blank Double Ended Blank Retaining Ring
RAD 350SL (-2) 10686 10687 10688 10036 10037 10306
RAD 7GX (-2) 19260 13367 13368 13364 13365 12733
RAD 7GX-R 13512 12902 13442 13773 12903 10306
RAD 10GX (-2) 19260 13367 13368 13364 13365 12733
RAD 15DX (-2) 17375 18480 19094 17888 19093 17367
RAD 1800NG 10004 10007 10009 10005 10008 10014
RAD 1800NGX-R 13484 13515 13516 13513 13514 13476
RAD 25GX (-2) 18250 18251 10516 10513 10448 10509
RAD 30DX (-2) 21482 24814 25437 24813 25016 21474
RAD 34 GX 11531 11534 11533 11530 11532 11350
RAD 50 DX Serpentine 25286 26118 26119 26120 26121 21455
RAD 60 DX 15375 15788 15790 15373 15789 15367
RAD 80 DX 23144 13508 13509 13505 13506 11930
RAD 85 GX 23144 13508 13509 13505 13506 11930
RAD 110DX 23776 26157 26158 26159 26160 26160



E-RAD Series Standard Deep Socket Double Ended Arm Blank Double Ended Blank Retaining Ring
E-RAD (BLU) 700 19260 13367 13368 13364 13365 12733
E-RAD (BLU) 1500 17375 18480 19094 17888 19093 17367
E-RAD (BLU) 2500 COMP 18250 18251 10516 10513 10448 10509
E-RAD (BLU) 3000 11531 11534 11533 11530 11532 11350
E-RAD (BLU) 6000 16368 17643 15790 16260 15789 15367
E-RAD (BLU) 7500 23144 13508 13509 13505 13506 11930
E-RAD (BLU) 11K 23776 26157 26158 26159 26160 18301



B-RAD Series Standard Deep Socket Double Ended Arm Blank Double Ended Blank Retaining Ring
(D)B-RAD (SELECT) 500 19260 13367 13368 13364 13365 12733
(D)B-RAD (SELECT) 1000 19260 13367 13368 13364 13365 12733
(D)B-RAD (SELECT) 1500 17375 18480 19094 17888 19093 17367
(D)B-RAD (SELECT) 3000 Serpentine 21482 24814 25437 24813 25016 21474
(D)B-RAD (SELECT) 3000 Spline 10022 10025 10027 10024 10026 21474
B-RAD (BL SELECT) 5000 25286 26118 26119 26120 26121 21455



V-RAD Series Standard Deep Socket Double Ended Arm Blank Double Ended Blank Retaining Ring
V-RAD 1000 19260 13367 13368 13364 13365 12733
V-RAD 1500 17375 18480 19094 17888 19093 17367
V-RAD 3000 21482 24814 25437 24813 25016 21474
DV-RAD 1000 19260 13367 13368 13364 13365 25243
DV-RAD 1500 17375 18480 19094 17888 19093 25242
DV-RAD 2500 10514 10515 10516 10513 10448 10509
