The STS imperial bolt tensioner range is designed for topside operation in a wide variety of applications including pipeline flanges, heat exchangers, pressure vessels, compressor covers, boiler feed pumps, anchor bolts and many others. The range comprises of 26 imperial size options ranging from ¾” to 4” thread size and all models are suitable for working pressures up to 1500 bar. Each model of hydraulic tensioning cylinder within the tensioner range can be operated with a variety of threaded pullers and nut rotating sockets ensuring that the maximum possible range of bolt sizes can be accommodated using the minimum number of hydraulic cylinders. Threaded pullers, bridges and nut rotating sockets are available as individual components
All Hi-Force hydraulic bolt tensioners are designed and manufactured to include a wear coated piston, maximum piston stroke indicator, self-energizing high pressure seals, dual quick connect couplings for easy multiple tensioner connection and a user friendly operation and maintenance procedure.
Capacities from 234 to 2649 kN
Bolt sizes from ¾” to 4″
Working pressure 1500 bar
Single acting design with manual piston retraction
High grade alloy steel construction
Nitrocarburized piston
Maximum piston stroke indicator
Dual quick connect couplings for easy connection
Designed to fit most sizes of ANSI and API flanges and some Compact flanges
Interchangeable accessories to cover multiple stud bolt sizes using same tensioner
Customized and special design tensioners are available on request
Download
Enquire
Topside Bolt Tensioners Imperial Range
Model Number | Bolt Thread Size | Threads per inch | Capacity | Effective area cm2 | Stroke mm | Weight kg | |
---|---|---|---|---|---|---|---|
kN | tons | ||||||
STS1-075B1 | 3/4″ | 10 | 234 | 23.9 | 15.6 | 10 | 1.7 |
STS1-087B1 | 7/8″ | 9 | 234 | 23.9 | 15.6 | 10 | 1.7 |
STS1-100B2 | 1″ | 8 | 234 | 23.9 | 15.6 | 10 | 1.7 |
STS1-112B2 | 1 1/8″ | 8 | 234 | 23.9 | 15.6 | 10 | 1.7 |
STS2-125B1 | 1 1/4″ | 8 | 457 | 46.6 | 30.5 | 15 | 3.5 |
STS2-137B1 | 1 3/8″ | 8 | 457 | 46.6 | 30.5 | 15 | 3.5 |
STS2-150B1 | 1 1/2″ | 8 | 457 | 46.6 | 30.5 | 15 | 3.5 |
STS3-162B1 | 1 5/8″ | 8 | 822 | 83.8 | 54.8 | 15 | 6.1 |
STS3-175B1 | 1 3/4″ | 8 | 822 | 83.8 | 54.8 | 15 | 6.1 |
STS3-175B2 | 1 3/4″ | 8 | 822 | 83.8 | 54.8 | 15 | 6.1 |
STS3-187B1 | 1 7/8″ | 8 | 822 | 83.8 | 54.8 | 15 | 6.1 |
STS3-187B2 | 1 7/8″ | 8 | 822 | 83.8 | 54.8 | 15 | 6.1 |
STS3-200B2 | 2″ | 8 | 822 | 83.8 | 54.8 | 15 | 6.1 |
STS4-187B1 | 1 7/8″ | 8 | 1264 | 128.9 | 84.3 | 15 | 10.6 |
STS4-200B1 | 2″ | 8 | 1264 | 128.9 | 84.3 | 15 | 10.6 |
STS4-200B2 | 2″ | 8 | 1264 | 128.9 | 84.3 | 15 | 10.6 |
STS4-225B2 | 2 1/4″ | 8 | 1264 | 128.9 | 84.3 | 15 | 10.6 |
STS4-250B2 | 2 1/2″ | 8 | 1264 | 128.9 | 84.3 | 15 | 10.6 |
STS5-250B1 | 2 1/2″ | 8 | 1833 | 186.9 | 122.2 | 15 | 16.0 |
STS5-275B1 | 2 3/4″ | 8 | 1833 | 186.9 | 122.2 | 15 | 16.0 |
STS5-300B1 | 3″ | 8 | 1833 | 186.9 | 122.2 | 15 | 16.0 |
STS6-300B1 | 3″ | 8 | 2649 | 270 | 176.6 | 15 | 23.5 |
STS6-325B1 | 3 1/4″ | 8 | 2649 | 270 | 176.6 | 15 | 23.5 |
STS6-350B1 | 3 1/2″ | 8 | 2649 | 270 | 176.6 | 15 | 23.5 |
STS6-375B3 | 3 3/4″ | 8 | 2649 | 270 | 176.6 | 15 | 23.5 |
STS6-400B3 | 4″ | 8 | 2649 | 270 | 176.6 | 15 | 23.5 |
Note: Weight is for load cell and bridge only. Total weight of complete assembly depends on size of puller and nut rotating socket selected. Tommy bars are not included. Hi-Force recommends one tommy bar for every four tensioners.
TOMMY BAR
Tensioner Range | Tommy Bar |
---|---|
STS1 | TTB06 |
STS2 | TTB08 |
STS3 | TTB10 |
STS4 | TTB10 |
STS5 | TTB14 |
STS6 | TTB14 |

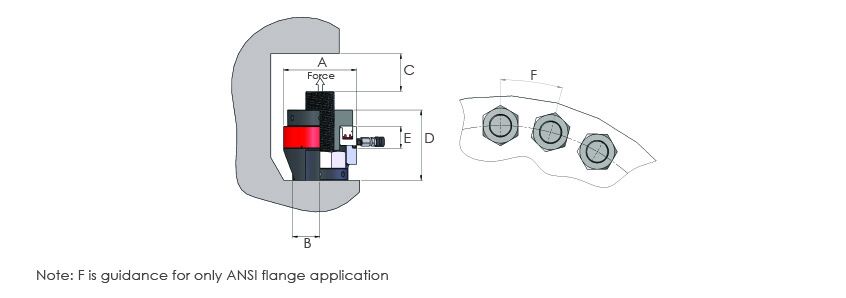

Model Number | Dimensions in mm | |||||
---|---|---|---|---|---|---|
A | B | C min | D | E | F | |
STS1-075B1 | 74 | 28 | 74 | 90 | 45 | 51 |
STS1-087B1 | 74 | 28 | 74 | 90 | 45 | 54 |
STS1-100B2 | 74 | 30 | 80 | 98 | 45 | 61 |
STS1-112B2 | 74 | 30 | 80 | 98 | 45 | 64 |
STS2-125B1 | 102 | 39 | 103 | 128 | 54 | 74 |
STS2-137B1 | 102 | 39 | 103 | 128 | 54 | 77 |
STS2-150B1 | 102 | 39 | 103 | 128 | 54 | 80 |
STS3-162B1 | 133 | 47 | 115 | 150 | 56 | 92 |
STS3-175B1 | 133 | 47 | 115 | 150 | 56 | 93 |
STS3-175B2 | 133 | 50 | 117 | 155 | 56 | 104 |
STS3-187B1 | 133 | 47 | 115 | 150 | 56 | 97 |
STS3-187B2 | 133 | 50 | 117 | 155 | 56 | 104 |
STS3-200B2 | 133 | 50 | 117 | 155 | 56 | 104 |
STS4-187B1 | 163 | 50 | 119 | 149 | 57 | 104 |
STS4-200B1 | 163 | 50 | 119 | 149 | 57 | 104 |
STS4-200B2 | 163 | 62 | 119 | 149 | 57 | 106 |
STS4-225B2 | 163 | 62 | 135 | 165 | 57 | 121 |
STS4-250B2 | 163 | 62 | 135 | 165 | 57 | 127 |
STS5-250B1 | 193 | 73 | 145 | 187 | 60 | 134 |
STS5-275B1 | 193 | 73 | 145 | 187 | 60 | 140 |
STS5-300B1 | 193 | 73 | 145 | 187 | 60 | 147 |
STS6-300B1 | 233 | 84 | 178 | 216 | 64 | 161 |
STS6-325B1 | 233 | 84 | 178 | 216 | 64 | 167 |
STS6-350B1 | 233 | 84 | 178 | 216 | 64 | 172 |
STS6-375B3 | 233 | 105 | 205 | 257 | 64 | 191 |
STS6-400B3 | 233 | 105 | 205 | 257 | 64 | 196 |
