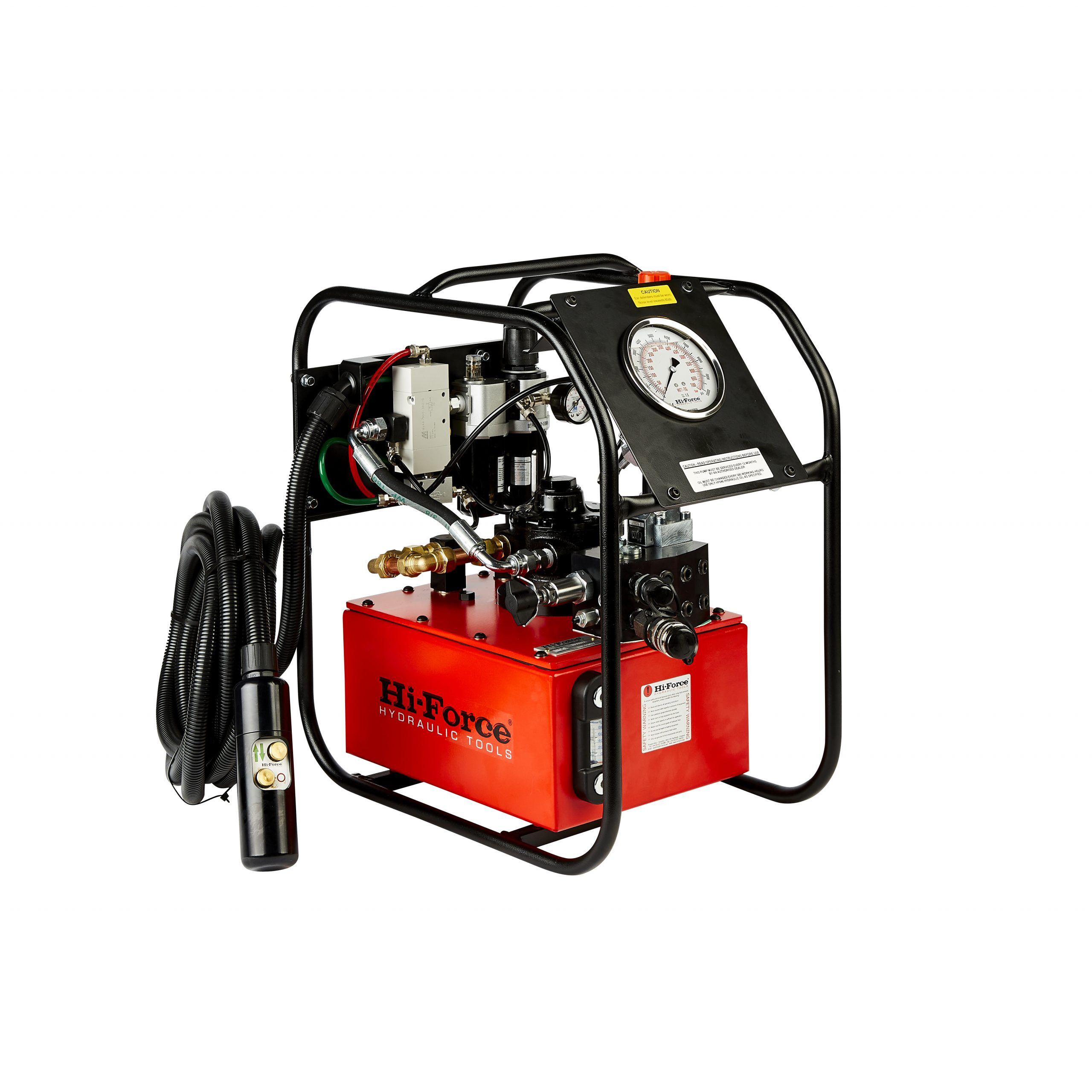

The Hi-Force TPA Series of Pneumatic driven pump is a premier 10,000 PSI torque wrench pump made in the UK.
TPA Features:
VIEW TPA PNEUMATIC TORQUE WRENCH PUMP TEAR SHEET
| Model Number | Power Supply | Pressure Gauge | Gauge Reading | Flow rate gallons/min | Oil cap. gallons | Max. oil temp | Weight incl. oil lbs | ||
|---|---|---|---|---|---|---|---|---|---|
| 1st stage 0-943 psi | 2nd stage 943-4713 psi | 3rd stage 4713-10000 psi | |||||||
| TPA07A | 100 psi | analog | bar/psi | 427.17 | 97.64 | 48.82 | 1.85 | 80°C | 66.1 |
| TPA07D | 100 psi | digital | bar/psi/Nm/lbf.ft | 427.17 | 97.64 | 48.82 | 1.85 | 80°C | 66.1 |

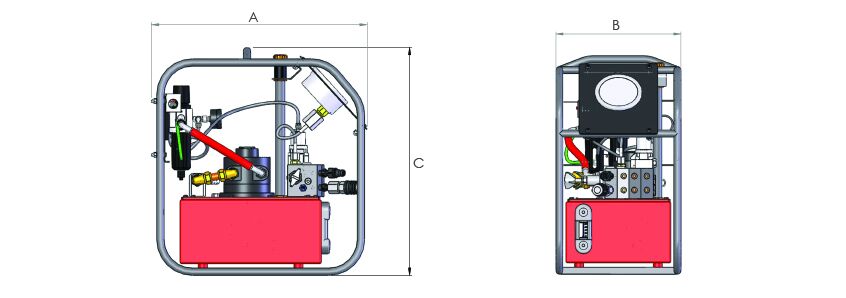

| Model Number | Dimensions in inch | ||
|---|---|---|---|
| A | B | C | |
| TPA07A | 18.68 | 11.27 | 19.74 |
| TPA07D | 18.68 | 11.27 | 19.74 |
Why Choose Pneumatic Hydraulic Pumps for Torque Applications?
Pneumatic hydraulic pumps offer key advantages for torque applications, especially in environments where electric equipment can create hazards. The TPA Series operates safely in explosive areas and keeps noise below 90 decibels to protect operators. Its three-stage pump delivers efficient, progressive flow across the whole pressure range:
Every TPA pump includes factory-fitted roll bar protection and a carrying frame. These aren’t cosmetic additions. Industrial job sites demand tools that withstand rough handling and transport. The rugged frame design protects critical components while maintaining the pump’s compact footprint.
An exhaust air radiator cooling system comes standard on all models. This prevents overheating during continuous operation, extending tool life and maintaining consistent performance. The 1.85-gallon oil capacity supports extended run times without frequent refills.
The TPA Series includes a remote hand pendant controller with a 16.5-foot cable. This extended reach allows operators to control the pump from safe distances or convenient positions. You’re not tethered to the pump location when positioning wrenches on difficult bolt patterns.
Pressure control comes through an adjustable relief valve with a locking nut. Set your target pressure, lock it in, and maintain consistent torque output across multiple fasteners. This feature proves essential when torque-to-yield or torque-plus-angle methods require precise initial torque values before angle rotation begins.
Choose between analog and digital gauge configurations based on your documentation needs. The TPA07A model features a traditional analog gauge with bar and PSI readings. The TPA07D digital model displays bar, PSI, Newton-meters, and pound-feet. Digital gauges simplify data recording for quality control documentation.
The multi-outlet split block enables simultaneous operation of up to four hydraulic torque wrenches. This capability transforms productivity on large flange assemblies or equipment with multiple bolt patterns. Instead of sequential torquing, run multiple wrenches in parallel. Same pressure. Same torque. Consistent results across all fasteners.
This parallel operation mode is especially important when bolt relaxation affects the final clamp load. Tightening all bolts simultaneously reduces settling time between passes. In turn, this ensures accurate clamping on critical joints.
Both models include quick-connect couplings for fast wrench changeovers and setup.
Hi-Force TPA pumps deliver precise hydraulic power for critical bolt tensioning across industries. Power generation facilities use them for turbine assembly, oil and gas operations rely on them for pipeline flanges, and manufacturing plants apply them in heavy equipment assembly to ensure accurate clamp loads. Their compact design makes them easy to move between shop and field, whether for remote job sites or permanent tooling stations.
ALLTORC offers immediate access to Hi-Force TPA Series pumps, backed by over 35 years of experience. Our torque specialists provide expert guidance to select the right pump for your hydraulic torque wrench system, whether you need analog simplicity or digital precision. With the West Coast’s largest local inventory, plus rental, repair, and ISO-accredited calibration under one roof, our services can help to keep your operations running smoothly.
Contact us today to discuss your bolting requirements and see how the TPA Series can enhance your torque and angle applications.
Hi-Force TPA pumps are ideal for any industry that requires precise bolt tensioning and torque control. They’re commonly used in power generation for turbine assembly, oil and gas for pipeline flanges, and manufacturing for heavy equipment assembly. Their compact and portable design also makes them suitable for shop and field operations.
Yes. The TPA Series features a multi-outlet split block that allows simultaneous operation of up to four wrenches. Running multiple wrenches in parallel ensures consistent pressure and torque across all fasteners while reducing settling time and improving clamp load accuracy.
Absolutely. The TPA Series is pneumatically driven, eliminating the need for electrical power and reducing the risk of sparks or electrical hazards. They operate safely in explosive atmospheres and meet strict safety standards, making them suitable for petrochemical, power generation, and other high-risk industrial settings.
