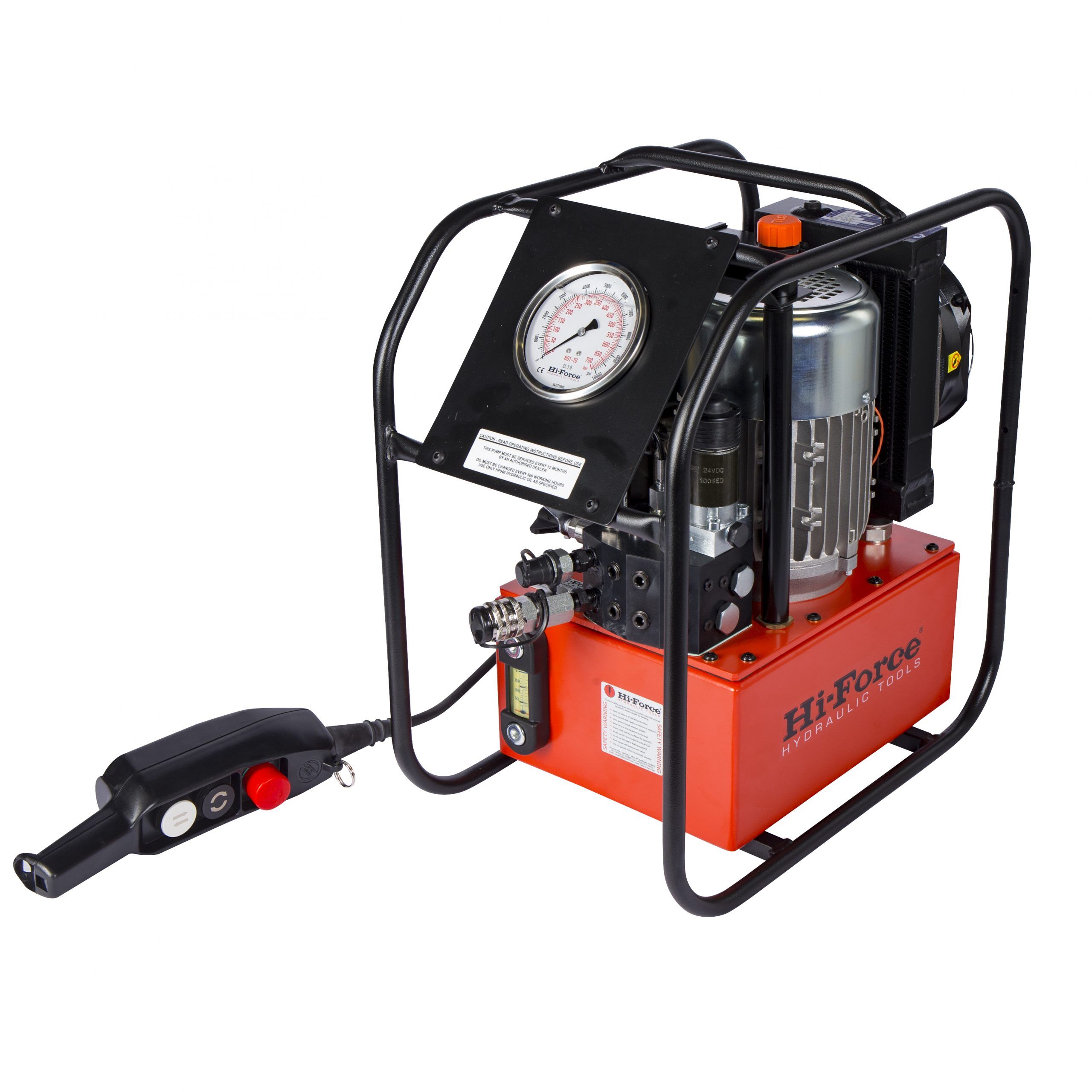

TPE Range
Description
Working pressure 700 bar
High flow 3-stage pump
Compact and lightweight
Low noise operation (<88 db)
Supplied fitted with one set of quick connect couplings
Automatically activated oil cooling heat exchanger
Adjustable torque setting pressure relief valve with locking nut
Analogue or digital gauge options
Remote hand pendant controller with 5 metre cable for easy operation
Choice of manual operation with auto retract or fully automatic operation
Multi-outlet split block for simultaneous operation of up to 4 wrenches
Factory fitted roll bar protection and carrying frame
| Model Number | Power Supply | Pressure Gauge | Gauge Reading | Flow rate l/min | Oil cap. litres | Max. oil temp | Weight incl. oil kg | ||
|---|---|---|---|---|---|---|---|---|---|
| 1st stage 0-65 bar | 2nd stage 65-325 bar | 3rd stage 325-700 bar | |||||||
| TPE15A | 110V-1Ph-50Hz | analogue | bar/psi | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39 |
| TPE15D | 110V-1Ph-50Hz | digital | bar/psi/Nm/lbf.ft | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39 |
| TPE16A | 120V-1Ph-60Hz | analogue | bar/psi | 7.8 | 1.8 | 0.90 | 7 | 80°C | 39 |
| TPE16D | 120V-1Ph-60Hz | digital | bar/psi/Nm/lbf.ft | 7.8 | 1.8 | 0.90 | 7 | 80°C | 39 |
| TPE25A | 230V-1Ph-50Hz | analogue | bar/psi | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39 |
| TPE25D | 230V-1Ph-50Hz | digital | bar/psi/Nm/lbf.ft | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39 |
| TPE26A | 230V-1Ph-60Hz | analogue | bar/psi | 7.8 | 1.8 | 0.90 | 7 | 80°C | 39 |
| TPE26D | 230V-1Ph-60Hz | digital | bar/psi/Nm/lbf.ft | 7.8 | 1.8 | 0.90 | 7 | 80°C | 39 |
| TPE45A | 400V-3Ph-50Hz | analogue | bar/psi | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39 |
| TPE45D | 400V-3Ph-50Hz | digital | bar/psi/Nm/lbf.ft | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39 |
| TPE46A | 480V-3Ph-60Hz | analogue | bar/psi | 7.8 | 1.8 | 0.90 | 7 | 80°C | 39 |
| TPE46D | 480V-3Ph-60Hz | digital | bar/psi/Nm/lbf.ft | 7.8 | 1.8 | 0.90 | 7 | 80°C | 39 |
OPTIONAL COUPLER SETS
| Model Number | Description |
|---|---|
| TP-CS1 | Single set of male / female flat face couplers for simultaneous operation of two hydraulic wrenches |
| TP-CS2 | Double set of male / female flat face couplers for simultaneous operation of three hydraulic wrenches |
| TP-CS3 | Triple set of male / female flat face couplers for simultaneous operation of four hydraulic wrenches |

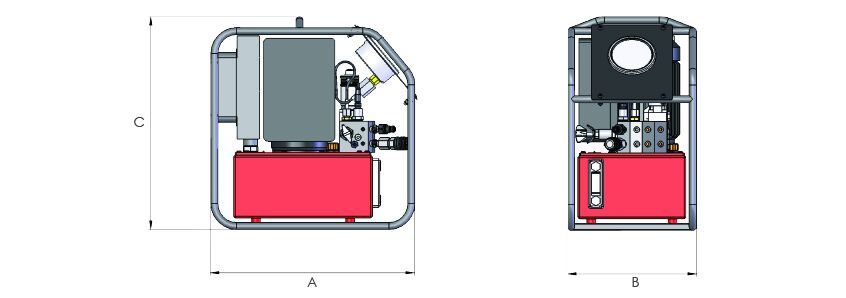

| Model Number | Dimensions in mm | ||
|---|---|---|---|
| A | B | C | |
| TPE15A | 456 | 286 | 476 |
| TPE15D | 456 | 286 | 476 |
| TPE16A | 456 | 286 | 476 |
| TPE16D | 456 | 286 | 476 |
| TPE25A | 456 | 286 | 476 |
| TPE25D | 456 | 286 | 476 |
| TPE26A | 456 | 286 | 476 |
| TPE26D | 456 | 286 | 476 |
| TPE45A | 456 | 286 | 476 |
| TPE45D | 456 | 286 | 476 |
| TPE46A | 456 | 286 | 476 |
| TPE46D | 456 | 286 | 476 |
