RAD CALIBRATION SYSTEMS

RAD Torque Wrench Calibration System

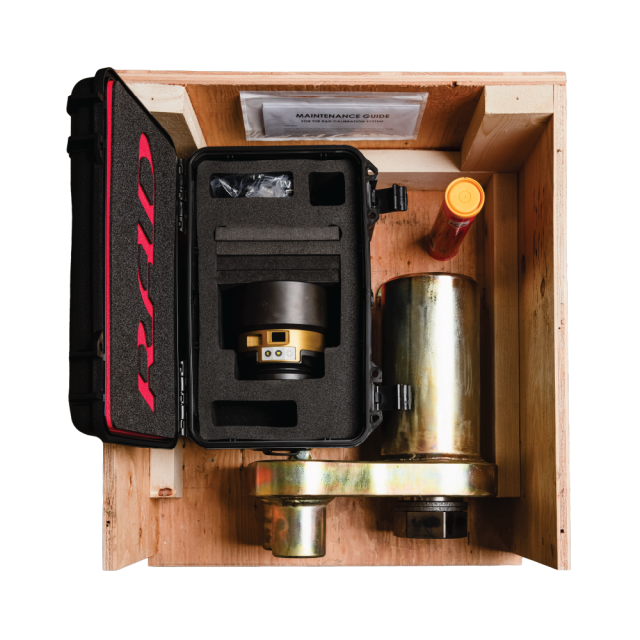

RAD Torque Systems now offers 5 Models of calibration stands covering torque ranges from 75 – 18,000 ft lbs. Each unit comes standard with a static transducer w/rundown fixture, a calibration stand, and a surface tablet with the RAD Calibration software provided.



RAD Calibration Systems are classified to BS 7882:2008 as Class 1 or better for the primary range (+/- 0.5% of reading from 20% to 100% of full scale). Each system comes fully calibrated and traceable to ISO 17025 standard ensuring the highest measurement of quality.



Tool Model	Torque Range
RAD CALIBRATION SYSTEM 1500	75-1500 ft. lbs.
RAD CALIBRATION SYSTEM 3500	175-3500 ft. lbs.
RAD CALIBRATION SYSTEM 7000	350-7000 ft. lbs.
RAD CALIBRATION SYSTEM 12K	600-12000 ft. lbs.
RAD CALIBRATION SYSTEM 18K	900-18000 ft. lbs.



Calibration System Product Sheet
